Stable Performance Wave Soldering Machine Pcb Assembly Line 700 Kg Weight

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

Stable Performance Wave Soldering Machine Pcb Assembly Line 700 Kg Weight

Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight
Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight

Large Image :  Stable Performance Wave Soldering Machine Pcb Assembly Line 700 Kg Weight

Product Details:
Place of Origin: China shenzhen
Brand Name: wave soldering machine
Certification: joy@wickon.net
Model Number: N250 wave oven
Payment & Shipping Terms:
Minimum Order Quantity: 1 set wave soldering machine
Price: wave soldering machine EXW price is 9500-30000usd/set
Packaging Details: smt wave oven packing with with wooden case
Delivery Time: wave soldering machine lead time is 15-20days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100sets per month for wave soldering machine
Detailed Product Description
Usage:: SMT PCB Production Line Voltage:: 220v
Dimensions:: 1800(L)*1200(W)*1600(H) Condition:: New
Key Selling Points:: Automatic Weight (KG):: 700 KG
Products: Wave Soldering Machine Application:: SMT PCB Production Line
Applicable Components:: 0402 Tape Width: 350
Power Supply::: 220v Package:: Wooden Case
Lead Time: 15-20days
High Light:

smt assembly machine

,

smd soldering oven

PCB Assembly line wave soldering machine N250 Full-automatic Wave Soldering Equipment PCB Soldering Machine For Sale







WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



1. Automatic conveying power system and auto synchronous board feeding functions.

  1.  Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

  2.  Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

  3.  PLC is used to control the machine, to ensure the reliability and stability of the system.

  4.  Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

  5.  Special alloy solder fingers, strengthened double v-groove.

  6.  Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

  7.  Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

  8.  Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

  9.  Timer startup feature for solder pot, solder melted within 90 minutes.

  10.  Automatic finger cleaner ensure the cleanliness of solder fingers.

    Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No. N250
Number of Pre-heaters 2
Pre-heater passage 800mm
Body size 1800(L)*1200(W)*1600(H)
Outside dimension 2600(L)*1200(W)*1600(H)
Weight 700KG
Total/steady consumption 11KW/4-6KW
Air supply 0.5MPa
Preheating style Hot air
Preheater consumption 220V 5KW
Control method Press key +PLC ?Option: touch screen, PC?
Range of temp. set-point Room temperature---300?
Preheating time About 10-15mins for setting 150?
Solder application Lead-free / Sn-Pb
Solder pot capacity 220KG
Solder pot temperature 300?
Solder pot consumption 380V 6KW
Solder temp. control method PID&SSR
Wave motor power 500W 220V
Solder melting About 120mins for setting 250?
PCB width 50-250mm
Conveyor speed 0-1800mm/min
Conveyor direction L-R (R-L optional)
Conveyor Inclination 4—7 º
Flux pressure 3-5 bar
Flux capacity 3.2L

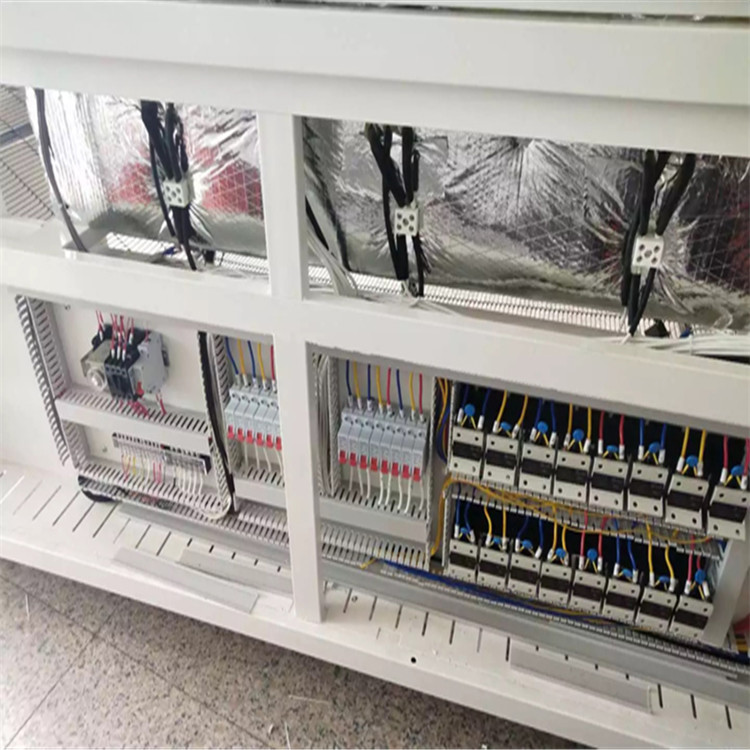

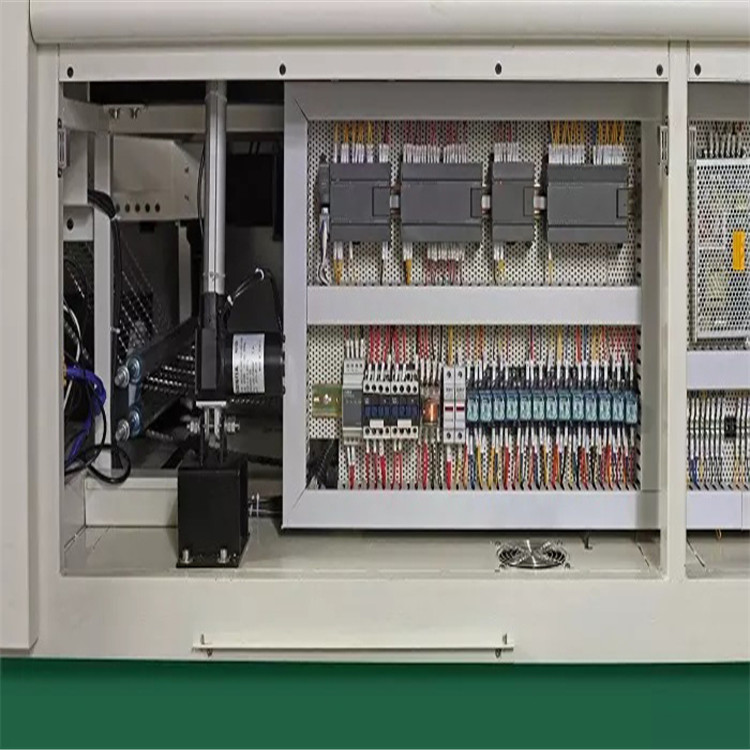

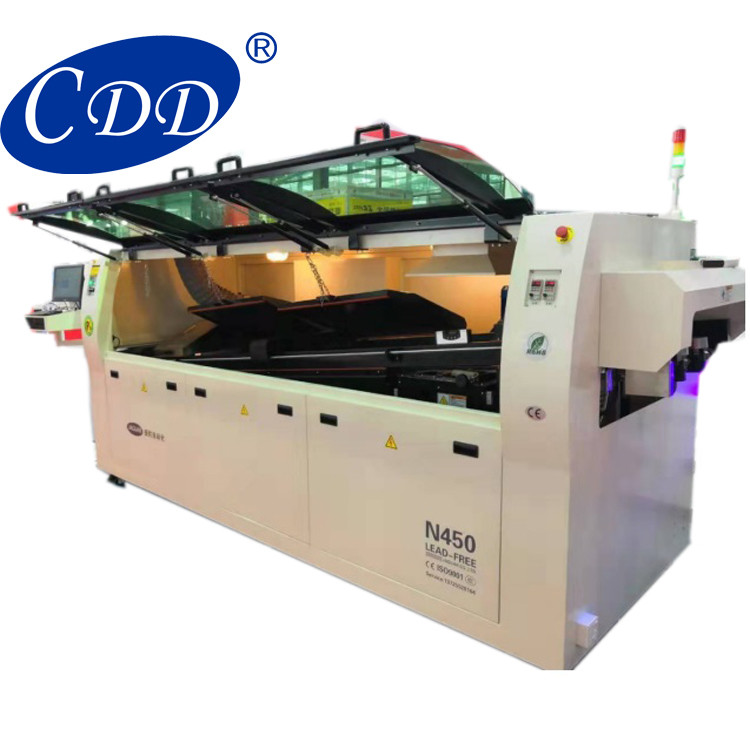

wave soldering machine picture show:

Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight 0Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight 1Stable Performance Wave Soldering Machine  Pcb Assembly Line  700 Kg Weight 2
