High Efficiency Pcb Cleaner Machine Ultrasonic Pcb Cleaning Machine

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine
High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine
video play

Large Image :  High Efficiency Pcb Cleaner Machine Ultrasonic Pcb Cleaning Machine

Product Details:
Place of Origin: China
Brand Name: SMT Stencil cleaner
Certification: CE
Model Number: Pneumatic stencil cleaning machine SME-750
Payment & Shipping Terms:
Minimum Order Quantity: SMT Stencil cleaner 1 pcs
Price: SMT Stencil cleaner
Packaging Details: SMT magazine pcb rack packing with foam+wooden case
Delivery Time: SMT magazine pcb rack within 5 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 10000 pcs per month SMT Stencil cleaner
Detailed Product Description
Product: SMT Stencil Cleaner Usage: Industrial
Power: Pneumatic Stencil Cleaner SIZE: L800 X W950 X H1630(mm)
Solvent Consupmtion: 200~350ml/Pcs Max Stencil Size:: Max Stencil Size: L750 X W750 X H40(mm)
Liquid Tank:: 40L Clean Time:: 2~5min
Dry Time:: 2~5min Air Pressure:: 0.5~0.7Mpa
High Light:

automatic nozzle cleaner

,

smt stencil cleaner

Pneumatic Stencil Cleaning Machine Automatic SMT Stencil Cleaning Machine For SMT Stencil Cleaner SME-750



Delivery time :within 10-15days after received payment

Payment :TT, alibaba on line, Paypal, western union .





Pneumatic Stencil Cleaner details:

max stencil size:L750*W750*H40mm

Liquid Tank:40L

Clean time:2-5min

Dry time:2-5min

Air pressure:0.5-0.7mpa

Air flow rate:400-600L/min

Clean mothod:360degree rotation spray clean+compressed air blow dry

Filter system:100um/200/um/1um,3 level

Machine size:800*950*630MM

Machine weight:about 280kg

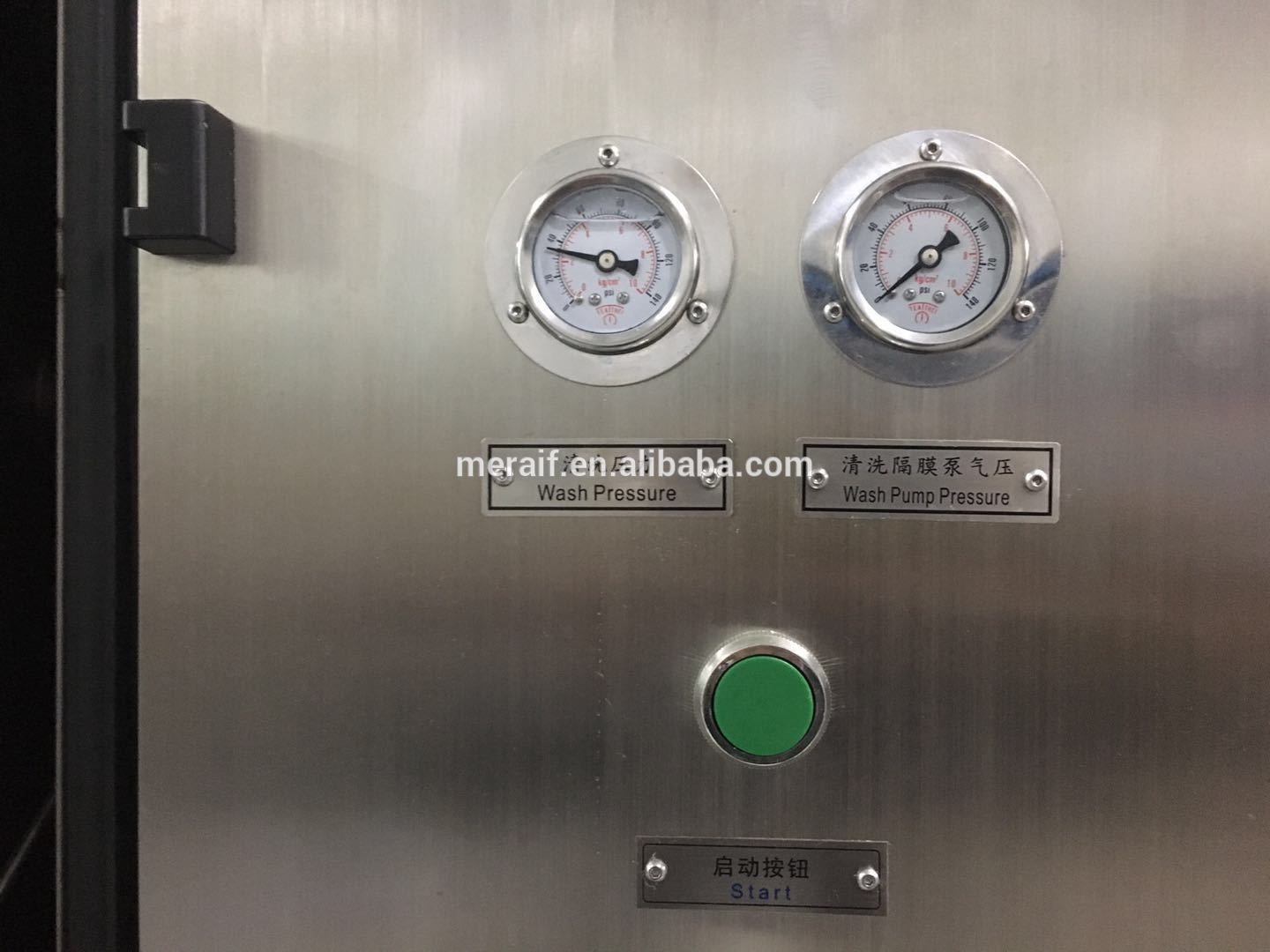

Pneumatic Stencil Cleaner picture show :

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 0

Stencil cleaning 1Stencil cleaning  5

Pneumatic Stencil Cleaner Feature:



1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360°rotate spray rods on both sides , ensure good cleaning quality and stable stencil tension.
5.  Liquid recycle use, low consumption.
6.  Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7.  3-level precise liquid filtering system. Liquid used repeatedly.
8.  Super well-known Pneumatic parts from all over the word manufactures.
9.  Modular design, easy maintenance.

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 3



High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 4

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 5

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 6

High Efficiency Pcb Cleaner Machine  Ultrasonic Pcb Cleaning Machine 7
