Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System
Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System
video play

Large Image :  Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System

Product Details:
Place of Origin: China
Brand Name: SMT Stencil cleaner
Certification: CE
Model Number: Ultrasonic Stencil Cleaner SME-750
Payment & Shipping Terms:
Minimum Order Quantity: Ultrasonic Stencil Cleaner 1 pcs
Price: SMT Stencil cleaner
Packaging Details: Ultrasonic Stencil Cleaner packing with foam+wooden case
Delivery Time: Ultrasonic Stencil Cleaner within 25-30 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 10000 pcs per month Ultrasonic Stencil Cleaner
Detailed Product Description
Product: Ultrasonic Stencil Cleaner Usage: Industrial
Skype: Sensenhenhao Email: Joy@wickon.net
Whatsapp/wechat: +8613424013606 Power: Pneumatic Stencil Cleaner
SIZE: L800 X W950 X H1630(mm) Solvent Consupmtion: 200~350ml/Pcs
Max Stencil Size:: Max Stencil Size: L750 X W750 X H40(mm) Liquid Tank:: 40L
Clean Time:: 2~5min Dry Time:: 2~5min
Air Pressure:: 0.5~0.7Mpa
High Light:

smt stencil cleaning machine

,

smt stencil cleaner

Ultrasonic Stencil Cleaner ,High pressure Spraying Stencil washing system,smt stencil cleaner wholesale





Delivery time :within 10-15days after received payment

Payment :TT, alibaba on line, Paypal, western union .





Pneumatic Stencil Cleaner details:

max stencil size:L750*W750*H40mm

Liquid Tank:40L

Clean time:2-5min

Dry time:2-5min

Air pressure:0.5-0.7mpa

Air flow rate:400-600L/min

Clean mothod:360degree rotation spray clean+compressed air blow dry

Filter system:100um/200/um/1um,3 level

Machine size:800*950*630MM

Machine weight:about 280kg

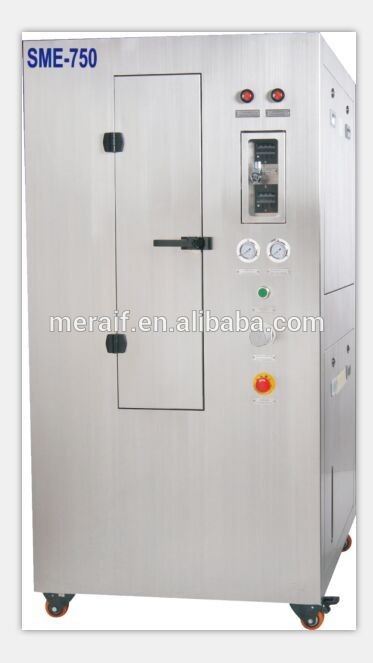

Pneumatic Stencil Cleaner picture show :

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 0



Pneumatic Stencil Cleaner Feature:



1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360°rotate spray rods on both sides , ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 1



Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 2

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 3

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 4

Low Consumption Pcb Cleaner Machine High Pressure Spraying Stencil Washing System 5
