Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer

Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer
Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer
video play

Large Image :  Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer

Product Details:
Place of Origin: China
Brand Name: wikcon Solder Paste Mixer
Certification: CE
Model Number: NSTAR - 600 solder paste mixer
Payment & Shipping Terms:
Minimum Order Quantity: Solder Paste Mixer 1 set
Price: 580-750usd/set Solder Paste Mixer
Packaging Details: Solder Paste Mixer packing with wooden case
Delivery Time: Solder Paste Mixer within 5 days after payment
Payment Terms: , T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month Solder Paste Mixer
Detailed Product Description
Products: Solde Past Mixer Working Voltage:: 220 V AC( 50 Hz) 60 W
Ability To Work:: 500 G * 2 Cans The Machine Size: 410 * 410 * 490 Mm (D * W * H)
Model: NSTAR - 600 Pakage: Wooden Case
Lead Time: 3days After Received Payment Package Weight: 45kg
High Light:

component counting machine

,

smt feeder parts

High Speed PCB SMT Automatic Solder Paste Mixer



Solder Paste Mixer Specifications

Working voltage: 220 v AC( 50 hz) 60 w

A rotational speed: 1400 RPM; Secondary rotation: 400 RPM

Ability to work: 500 g * 2 cans

Can accept solder paste pot M tank diameter Φ 60-67 standard Φ

S tank diameter: Φ 53 - Φ 60 (option, please contact the supplier)

L tank diameter :Φ 67 - Φ 74

Every time adjust time setting :0.1 ~ 9.9 minutes, 0.1 minutes;

10 ~ 30 minutes, adjust 1.0 minutes at a time.

Display and warning LED digital display, warning lights flashing and a buzzer

The machine size 410 * 410 * 490 mm (D * W * H)

Model NSTAR - 600

The net weight: 45 kg



Solder Paste Mixer Advantage:

Unique contoured shape, generous appearance and practical, which is made by advanced coating process workmanship.

Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.

Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient.

Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption.

Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste.

Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance.

Applies to Omron time relay controller, reliable and easy to operate.

Feature of Solder Paste Mixer
1.put the machine on a solid work surface and the connect power. Turn on swith after stabling the machine

2.Open the cover, and put two same weight bottle of solder past or ink into the barrel fixture.

3. Work time setting : the time can be set from 0.1-9.9 min through press the red button on the panel. Generally, it set at 3 minutes or so . If the solder paste is froze to low and stored for too long, the stir time should be increase to appropriate.

4. Press the start switch, the machine starts running when the set time is reached, the machine will automatically stop and whistle. If there is abnormal noise during operation, you should immediately press stop switch to check. (Note: do not open the cover before the machine stopping moving to avoid danger

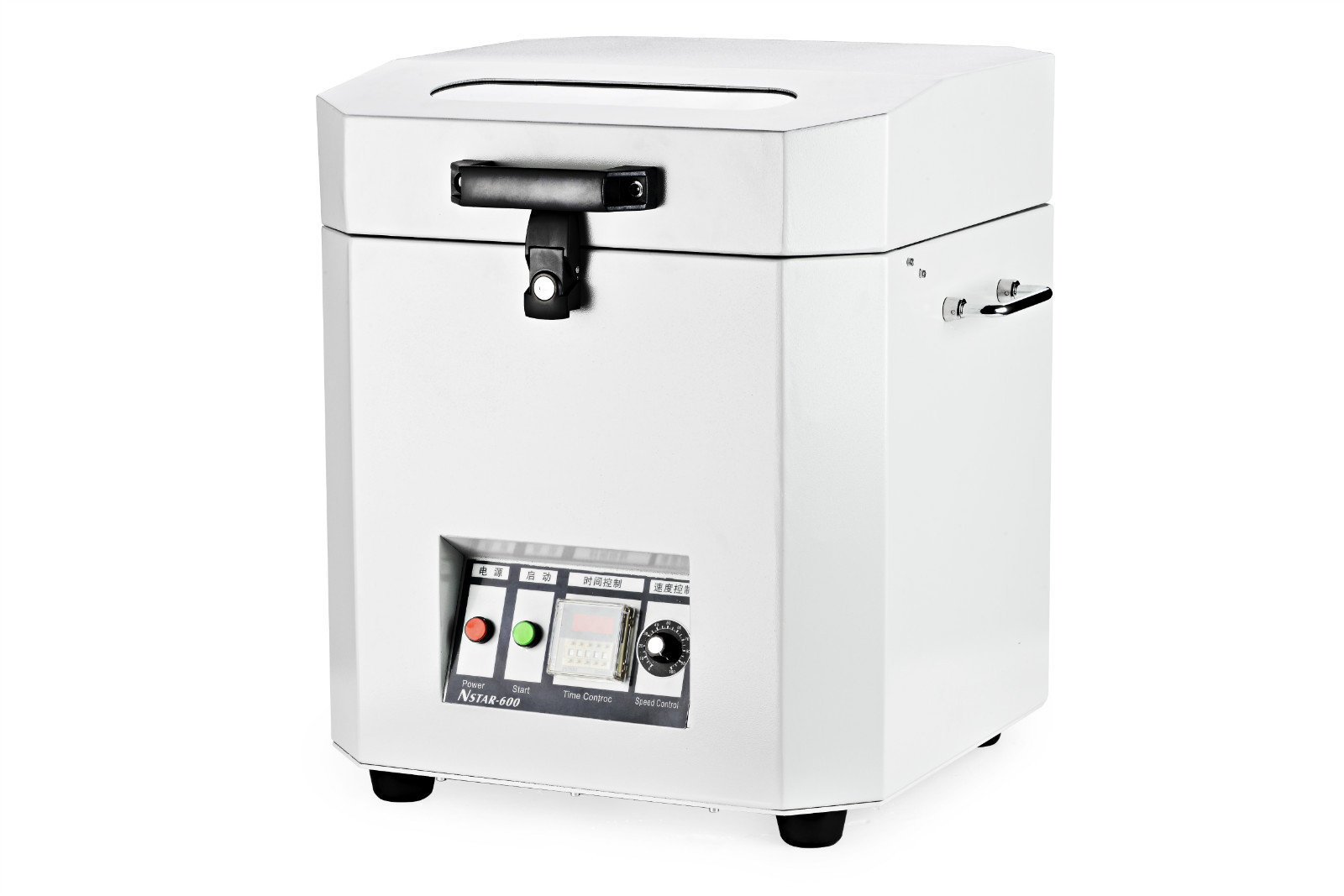

Solder Paste Mixer picture show:

Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer 0Reliable Smt Manufacturing Line High Speed Pcb Smt Automatic Solder Paste Mixer 1
