YAMAHA SMT MACHINE FEEDER CALIBRATION,SMT yamaha feeder calibration
SMT yamaha feeder calibration details :
① Simple structure in linear type ,easy in installation and maintation.
② Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
③ High pressure double crank to control the die opening and closing.
④ Running in a high automatization and intellectualization,no pollution
⑤ Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
How to use SMT yamaha feeder calibration
1. The acquisition for the rectangular coordinate of X-Y direction.
2. Check for the existence, transformation, user in the feeder
3. The installation is to euip it with actual device and consolidation in feeder base
4. Lens` safe arrival part, CCD Camera, the precise controller of X, Y, Z axis
5. The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
6. The simple calibration for removing or taking feeder easily
7. It is correction as measurement with CCD Camera.
8. Timer control make it pssible to change the IC pick-u time.

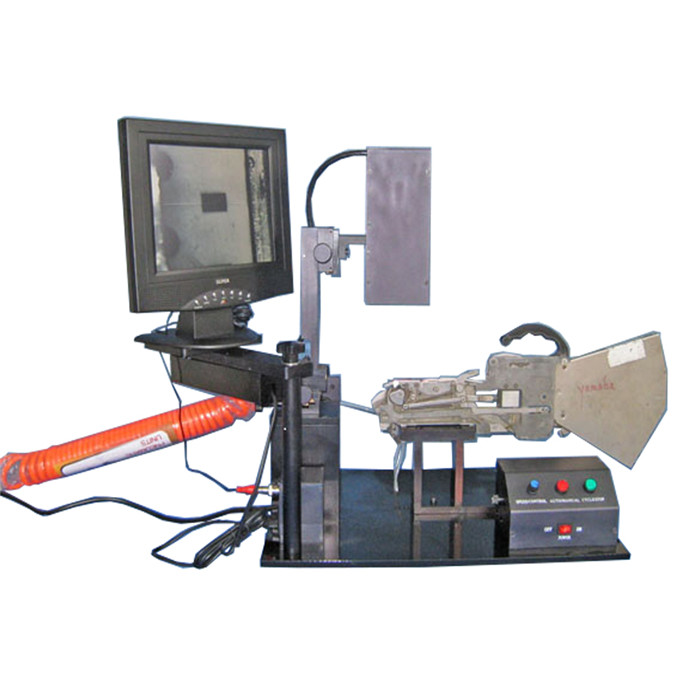

SMT yamaha feeder calibration picture show
