SMT Machine I-Pulse Feeder Calibration,smt I-Pulse feeder calibration
smt I-Pulse feeder calibrationdetails :
1, Funtion and feature:
A. for CM402/602 Feeders
B. Monitor 12" LED display
C. Type Pneumatic/Manual
D. Camera CCD 50 magnify
E, Exact feeder's clamp
F, Exact 8*2mm/12*4mm/16*8mm/24*8mm feeder control
G. One year quarantee
How to use smt I-Pulse feeder calibration
1. The acquisition for the rectangular coordinate of X-Y direction.
2. Check for the existence, transformation, user in the feeder
3. The installation is to euip it with actual device and consolidation in feeder base
4. Lens` safe arrival part, CCD Camera, the precise controller of X, Y, Z axis
5. The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
6. The simple calibration for removing or taking feeder easily
7. It is correction as measurement with CCD Camera.
8. Timer control make it pssible to change the IC pick-u time.

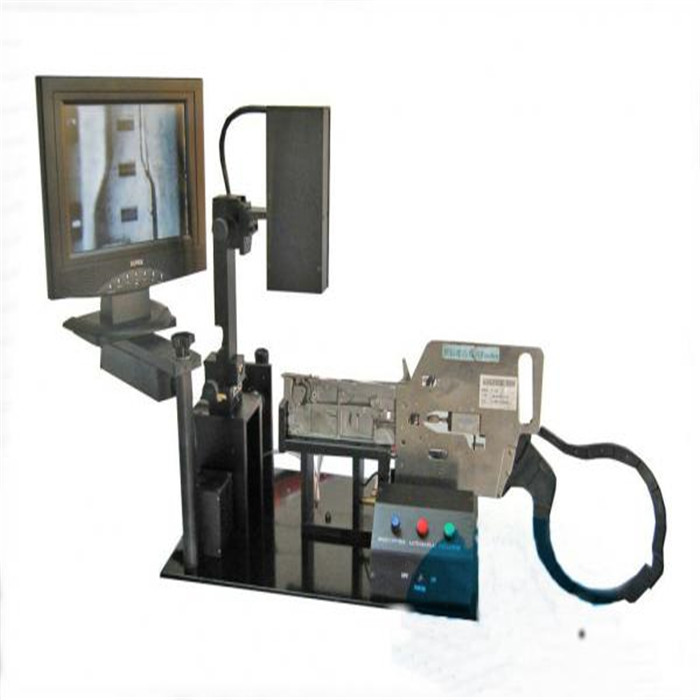

smt I-Pulse feeder calibration picture show
