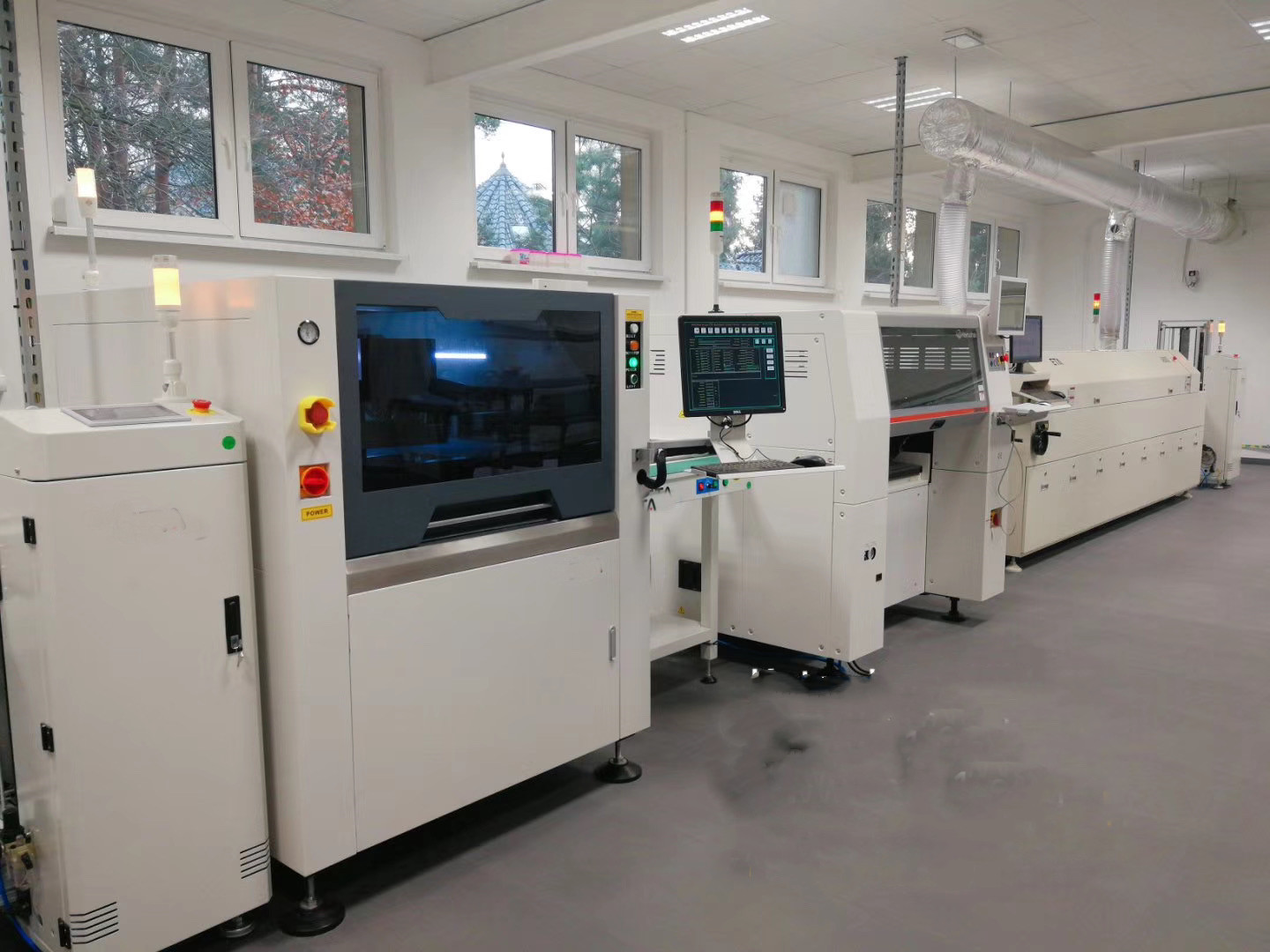

Total Solution SMT Manufacturing Line Custom Service

Total Solution SMT Manufacturing Line Custom Service
Total Solution SMT Manufacturing Line Custom Service Total Solution SMT Manufacturing Line Custom Service

Large Image :  Total Solution SMT Manufacturing Line Custom Service

Product Details:
Place of Origin: CHINA
Brand Name: SMT Solution machine line
Certification: CE
Model Number: PCB Board making machine
Payment & Shipping Terms:
Minimum Order Quantity: SMT Solution machine line 1 set
Price: PCB Board making machine 30000-50000usd/set
Packaging Details: PCB Board making machine packing with wooden case
Delivery Time: PCB Board making machine within 15 days after payment
Payment Terms: LED light making machines pay by TT,western union,paypal and so on
Supply Ability: SMT Solution machine line 300 sets per month
Usage: Automatic SMT Machine
Theory: smt pick and place machine
Detailed Product Description
Brand Name:: PCB Assembly Line Skype: Sensenhenhao
Website: Www.wickonsmt.com Application: SMT Assembly Production Line
Power Supply: AC220V 50Hz / AC110V Film Materials: Privacy Material
Usage: SMD LED SMT Applicable Components::: 0402~5050
High Light:

solder paste mixer machine

,

component counting machine

PCB Assembly Line / PCBA Solution / SMT Total Solution Line Manual LED Assembly Line



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



PCB Board making machine Specifications:

Model 20
Placement Speed 52000CPH
Placement Accuracy ±0.05mm
Machine Size(L×W×H) 1790×1370×1500mm
Machine Weight 1500kg
Dimension of PCB 60×65~400×350mm
The thickness of PCB 0.5-4mm
Feeder lanes 48
Mounting Head Number 20
The Range of Components 0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect)
Position Way Image recognition+Algorithm Compensation
Picking Way Picking at the same time
Electronic Parameter Simple -Phase 220V AC 50HZ3.5KVA
Air Source Requirement Dry air 0.45Mpa~0.6Mpa 200L/min

SMT Solution machine line Functions:

1.Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.

2.Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.

3.Digital test pressure, automatically process and alarm when it didn't pick the components successfully

4.Three-sector on transmission system, reduce the time for delivering the boards

5.Fitted with 48 feeder lanes

6.All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor

7.Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.
