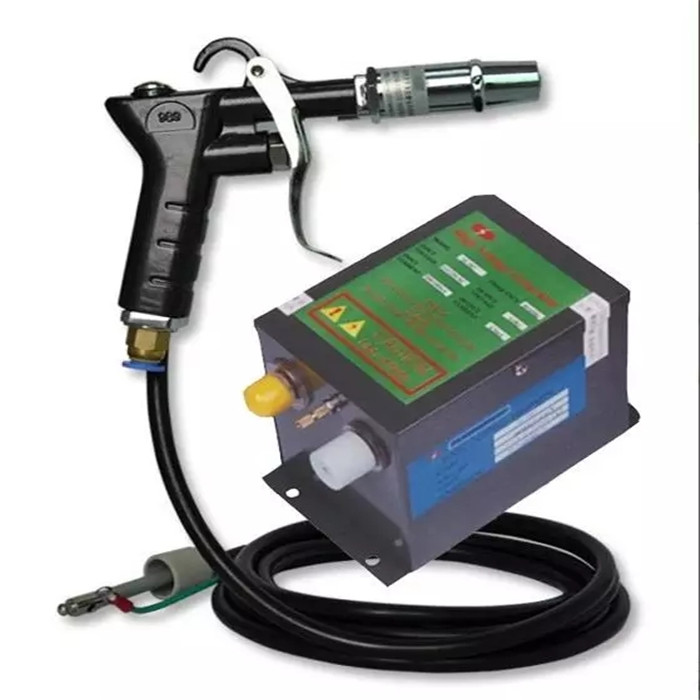

SL-004 + SL-007 High pressure Anti Static Ionizer Air Blow Spray Gun with power supply
SL-004 Ionizing air gun is a handheld device, which provides concentrated flows of high pressure ionized air to eliminate dust and neutralize static charges on object surfaces.
The effective distance of the guns is up to 1 meter, it is operated with power supply, which needs to be ordered separately.
Air Blow Spray Gun Technical parameters:
| Operating voltage: | 4.6KV(SL-007) |
| Current consumption: | 200uA |
| Operating temperature: | 0-50℃ |
| Weight: | 0.5kg |
| HV cable length: | 3m |
| Air velocity: | 40~70psi |
| Operting air velocity: | >10m/sec |
Electrostatic effect:
| Test voltage: | 1000V ~ 100V,-1000V ~-100V |
| Ambient temperature: | 22 ℃ ± 5 ℃ |
| Relative humidity: | ≤ 60% |
| Distance: | 150mm |
| And in time: | Positive Negative 0.8s 0.7s |
| Residual voltage: | -30V ~ +30 V |
Air Blow Spray Gun Features:
1. Metal gun head, feel good, light.
2. Induction corona discharge safely.
3. Coaxial cable, power lines resistant to bending, safe and reliable.
4. Airflow size can be adjusted freely.
It is widely used in electronic product, electronic assembly line, spray coating device and medical manufacturing
