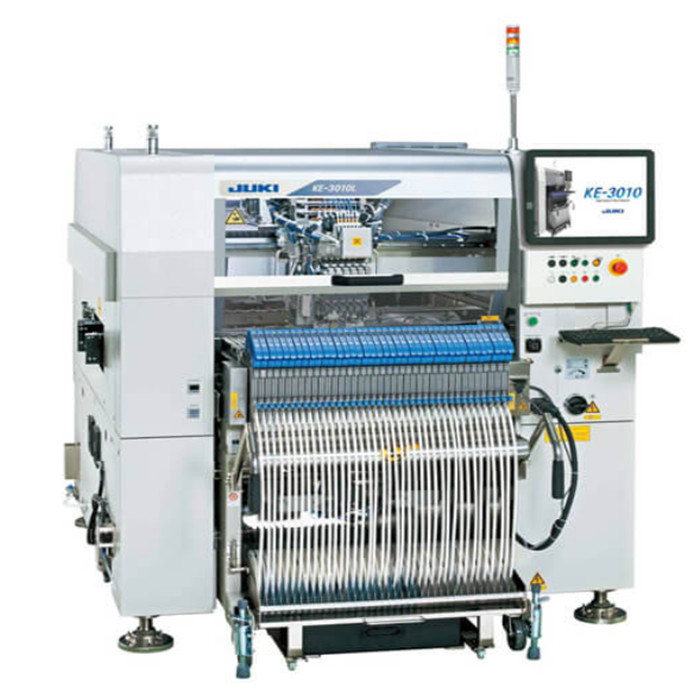

6 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-3010

Board size

M size (330×250 mm)

L size (410×360 mm)

L-Wide size (510×360 mm) *1

XL size (610×560 mm)

Applicability to long PWB (L size)*2

800×360mm

Applicability to long PWB (L-Wide size)*2

1,010×360mm

Applicability to long PWB (XL size)*2

1,210×560mm

Component height

6mm

12mm

Component size

Laser recognition

0402(01005)~33.5mm

Vision recognition

Standard camera

 3mm*3~33.5mm

High-resolution camera

 1.0×0.5mm*4~20mm

Placement speed

Chip

Optimum

23,500CPH

IPC9850

18,500CPH

IC*5

 9,000CPH *6

Placement accuracy

Laser recognition

±0.05 mm (±3σ)

Vision recognition

±0.04 mm

Feeder inputs

Max.160 in case of 8mm tape
(on a Electric double tape feeder)*7

*1

L-Wide size is optional

*2

Applicability to long PWB is optional.

*3

When using MNVC. (option)

*4

KE-3010 : When using both high-resolution camera and MNVC. (option)

*5

Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)

*6

Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010.

*7

When using Electric double tape feeder EF08HD.
