led pick and place machine Specification:
High-speed general-purpose placement machine KE-3020V/3020VR, faster, higher quality, improved production performance, continuous improvement of KE series products, so as to achieve a flexible high-speed and high-quality electric production line structure.
Chip components: 20,900CPH chip (laser recognition/best condition) 17,100CPH chip (laser recognition/based on IPC9850)
IC components: 9,470CPH (image recognition / using MNVC)
0402 (Inch 01005) chip～74mm square element, or 50×150mm
KE-3020V: Laser placement head × 1 (6 nozzles) + high resolution visual placement head × 1 (1 nozzle)
KE-3020VR: Laser placement head × 1 (6 nozzles) + 1 IC placement head with FMLA (1 nozzle)
It adopts electric double-track feeder, which can load up to 160 kinds of components.
MNVC is installed as standard
High-speed continuous image recognition
Pallet high-speed supply components (option)
Corresponding to long size substrate (option)
Corresponding to PoP implementation (option)
Substrate size:
M type substrate (330mm×250mm)
L-type substrate (410mm×360mm)
L-Wide type substrate (510×360mm)*1
XL type substrate (610mm×560mm)
To
Long substrate (L-shaped substrate specification) *2,800×360mm
Long board (L-Wide type board specification)*2 1,010×360mm
Long substrate (XL type substrate specification) *2, 1,210×560mm
Component height: 12mm specifications, 20mm specifications, 25mm specifications (XL type substrate specifications)
Component size: laser recognition, 0402 (English 01005) chip ~ 33.5mm square component
Image recognition: standard camera, 3mm～74mm square element, or 50×150mm
High-resolution cameras (all optional): 1.0mm×0.5mm*3～48mm square element, or 24×72mm
Component placement speed: chip components, best conditions: 20,900CPH
IPC9850 17,100CPH, IC component *4, 9,470CPH *5
Component placement accuracy: laser recognition, ±0.05mm (Cpk≧1)
Image recognition: ±0.03mm (MNVC±0.04mm)
Component placement types: up to 160 types
(Converted to 8mm tape (when using an electric dual-track tape feeder)) *6

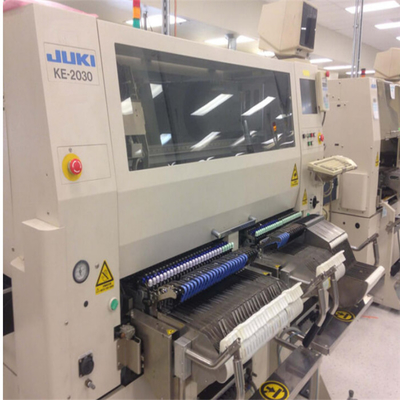

led pick and place machine picture show:
