Multi-functional SMT machine LED pick and place machine,LED bulb SMD mounter machine JUKI FX-3RA
SMD mounter machine JUKI FX-3RA Specification:
Series: FX series
High-speed modular placement machine FX-3RX (electric/mechanical belt feeder can be used in the same machine) high-speed, high-quality, high-performance modular placement machine, improve production efficiency, create high-quality products, and can be compatible with KE series Products are assembled into production lines, flexibly corresponding to various production applications
Chip components: 90,000CPH (0.040 seconds/chip, the best condition) 66,000CPH: chip (according to IPC9850 standard)
0402 chip～33.5mm square element
Laser recognition: ±0.05mm (±3σ)
The laser placement head is on-the-fly for flight recognition
2 worktables/4 axis arms/4 placement heads/24 nozzles structure
Adopt XY axis linear servo motor and full closed loop control
Up to 240 components can be loaded
Electric/mechanical replacement trolley
LED bulb SMD mounter machine Specification/model name:
High-speed modular placement machine FX-3RAL, High-speed modular placement machine FX-3RAXL
Substrate size: for L substrate (410×360mm)
For L-wide substrates (510×360mm)*1
For XL substrate (610×560mm)
Long substrate *1: 800×360mm, 800×560mm
Component height: 6mm specification
Component size: laser identification, 0402 (English 01005) ~ 33.5mm
Component placement speed
(Chip components): Best conditions, 0.040s/chip (90,000CPH)*2
IPC9850 66,000CPH*2
Component placement accuracy: laser recognition, ±0.05mm (±3σ)
Component placement types: up to 240 types (converted to 8mm tape (when using an electric dual-track tape feeder))

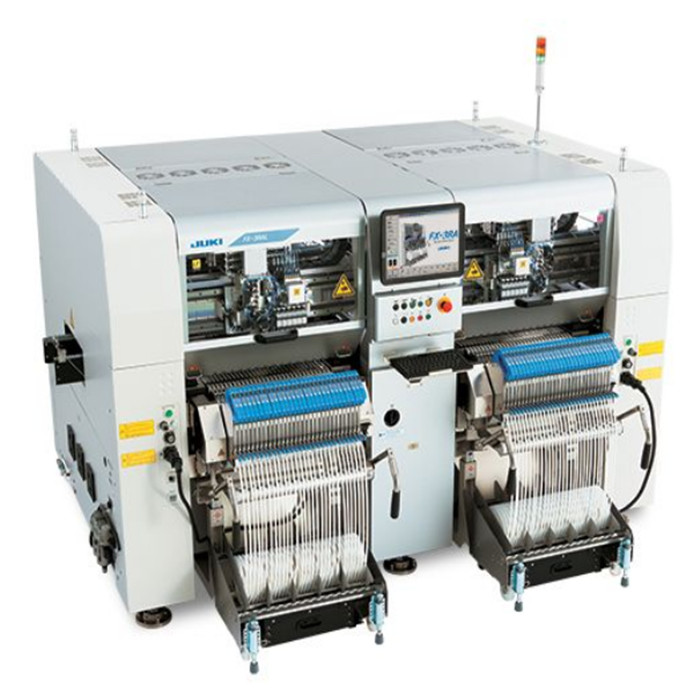

SMD mounter machine JUKI FX-3RA picture show:
