Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L

Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L
Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L
video play

Large Image :  Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L

Product Details:
Place of Origin: CHINA
Brand Name: XPF-L automatic fuji smt machine
Certification: CE
Model Number: SMT Machinery Pick and Place Machine
Payment & Shipping Terms:
Minimum Order Quantity: XPF-L automatic fuji smt machine 1 set
Price: 30000-100000usd/set XPF-L automatic fuji smt machine
Packaging Details: XPF-L automatic fuji smt machine packing with wooden case
Delivery Time: within 15 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 300 sets per month XPF-L automatic fuji smt machine
Usage: XPF-L automatic fuji smt machine
Theory: smt pick and place machine
Detailed Product Description
Brand Name:: XPF-L Automatic Fuji Smt Machine Skype: Sensenhenhao
Whastapp/wechat: +8613424013606 Power Supply:: AC220V 50HZ/AC110V 60Hz
Tape Width:: 8mm, 12mm, 16mm, 24mm Application:: SMT PCB Assembly Production Line
Applicable Components:: 0402.0603.0805.1206.QPF.SOP Speed:: 25,000 Cph
High Light:

5.0mm PCB SMD Assembly Machine

,

25000cph PCB SMD Assembly Machine

,

XPF-L Fuji Smt Machine

PCB SMD assembly machine  XPF-L automatic fuji smt machine smt production line



SMT Placement Machine Fuji XPF Pick And Place Machine PCB SMD assembly machine

Name:FUJI pick and place machine
Brand:FUJI
Model:FUJI XPF-L pick and place machine
Specification:FUJI XPF-L pick and place machine
Condition:original/copy
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect

XPF-L automatic fuji smt machine spec

FUJI XPF-L Specification:
The XPF is the world's first machine to feature dynamic head exchange.
The machine can switch between a high-speed placing head and a multi-purpose head automatically during production to ensure that the most efficient head for the current task is being used.
This includes the ability to switch to a glue head, meaning that glue application and part placement can be performed at the same machine.
Part Size:
01005 to 68x68mm Depending on Head Type
Speed:
* Revolver Head: 25,000 cph
* Single Nozzle: 9,000 cph
* M4 Auto Tool: Up to 10,500 cph
* Glue Tool: 0.2 sec/shot

PCB loading time: 1.8 sec
PCB size (LXW): Up to 457 x 356 mm
Thickness 0.4 (0.3) to 5.0mm
Machine Dimensions:

L: 1,500 mm, W: 1,607.5 mm, H: 1,419.5 mm
Machine body XPF-L: 1,500 kg
MFU-40: Approx. 240 kg (with W8 feeders loaded)
BTU-AII: Approx. 120 kg, BTU-B: Approx. 15 kg, MTU-AII: Approx. 615 kg (with trays/feeders loaded)

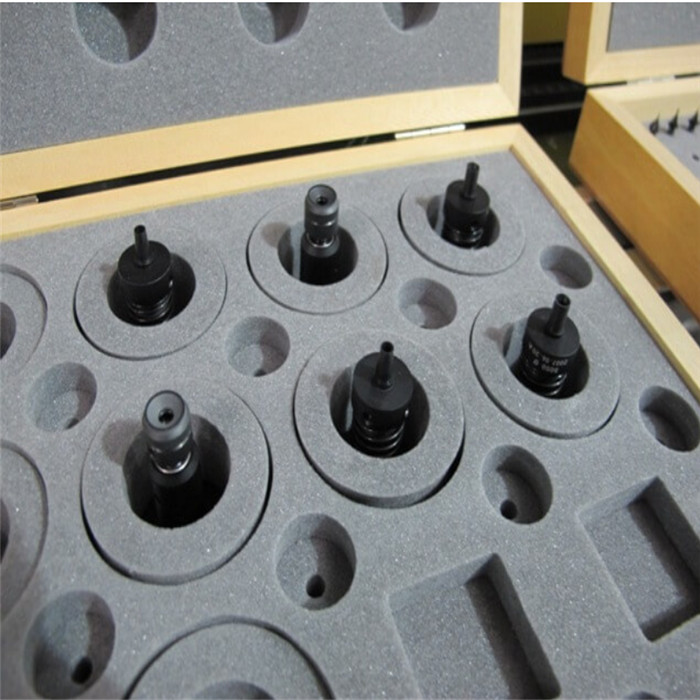

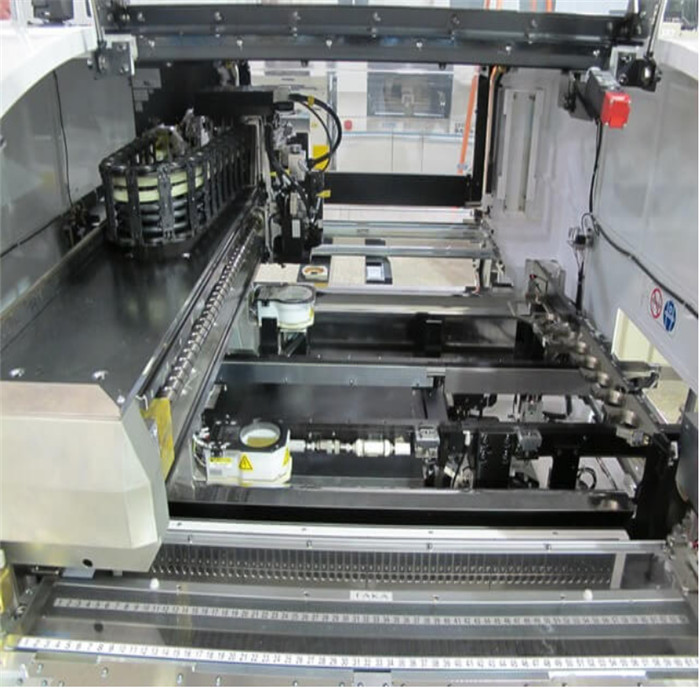

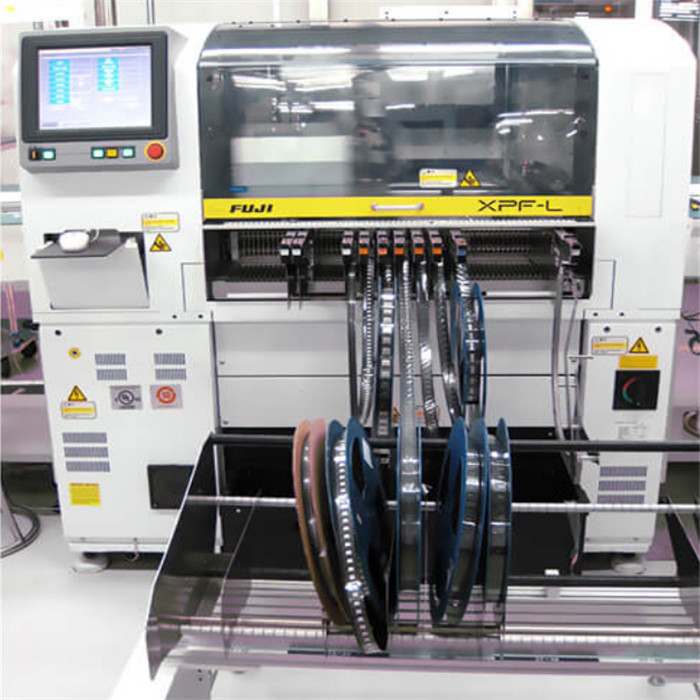

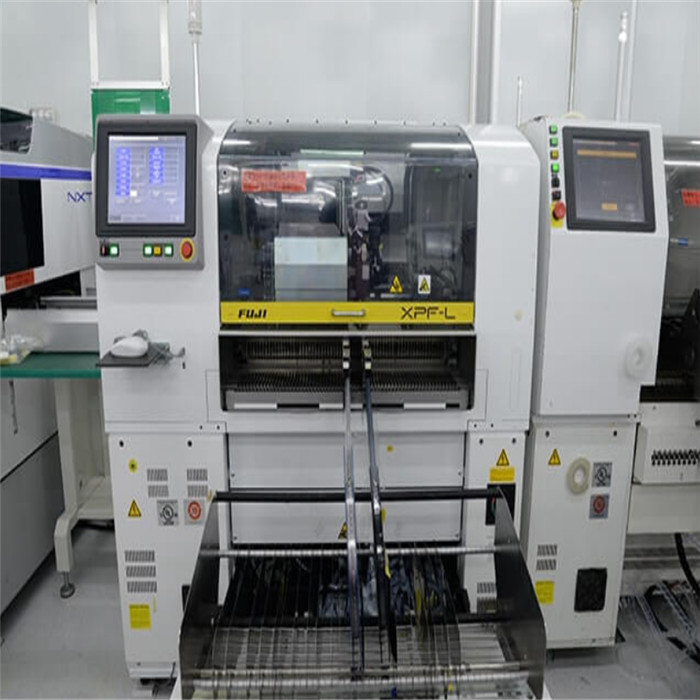

XPF-L automatic fuji smt machine picture show:

Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L 0Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L 1Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L 2Fuji 25000cph 5.0mm PCB SMD Assembly Machine XPF-L 3
