FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20

FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20
FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20
video play

Large Image :  FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20

Product Details:
Place of Origin: CHINA
Brand Name: SMT MACHINE FUJI AIMEX II
Certification: CE
Model Number: SMT Machinery Pick and Place Machine
Payment & Shipping Terms:
Minimum Order Quantity: SMT MACHINE FUJI AIMEX II 1 set
Price: 30000-100000usd/set SMT MACHINE FUJI AIMEX II
Packaging Details: SMT MACHINE FUJI AIMEX II packing with wooden case
Delivery Time: within 15 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 300 sets per month SMT MACHINE FUJI AIMEX II
Usage: SMT MACHINE FUJI AIMEX II
Theory: smt pick and place machine
Detailed Product Description
Brand Name:: SMT MACHINE FUJI AIMEX II Skype: Sensenhenhao
Whastapp/wechat: +8613424013606 Power Supply:: AC220V 50HZ/AC110V 60Hz
PCB Size:: 759mm×318mm The Smallest Element:: 0402~5.0×5.0 (diagonal 7.6) (When Using 6 Nozzles: 7.5×7.5) Height: Maximum 3.0mm
Feidadownload: MAX20 Type Mounting Speed:: 27,000 CPH
High Light:

27000CPH Pick And Place Machine

,

MAX20 Pick And Place Machine

,

FUJI AIMEX IIIC

SMT MACHINE ORIGINAL FUJI AIMEX IIIc AIMEX III AIMEX II FUJI PICK AND PLACE MACHINE used smt machine



FUJI AIMEX III Series: FUJI/Fuji AIMEX II Extended All-in-one Mounter (AIMEX2)
Flexible platform corresponding to various production forms, up to 180 types of tape elements can be mounted, the number of manipulators can be selected, the use of NPI support function corresponds to trial products and multiple varieties and small batch production, and dual-track corresponding independent production.



FUJI AIMEX III Feature 1
Up to 180 types of tape components can be mounted.
Because it can carry a large number of tape components, it is the most suitable machine for multi-variety production. In addition, it is also compatible with tray loading and tube loading. The tray unit can be mounted on any of the 4 feeding platforms. The maximum component height can be 38.1mm (1.5 inches).



FUJI AIMEX III  Feature 2
You can choose the number of robots
AIMEX II can choose the range of the number of manipulators from 2 to 4. Provide machines with the best number of manipulators suitable for the user's production volume. The illustration on the right shows a machine composed of 3 manipulators.



FUJI AIMEX III  Feature 3
Use NPI support function to support trial products and mass production of multiple varieties
The component data can be created automatically on the machine. When creating a production program, it can automatically create the most time-consuming component data, so it can quickly respond to image processing errors that occur in the first product when starting a prototype production line or switching production types.



FUJI AIMEX III  Feature 4
Independent production with dual track
The use of dual transport tracks corresponds to the dual-track production of different types of circuit boards. (Option) At this time, even if one track is in production, the other track can be changed separately. In addition, if the feeder is used at the same time to replace the cart at one time, the time for changing the thread can be reduced.

FUJI AIMEX III picture show:

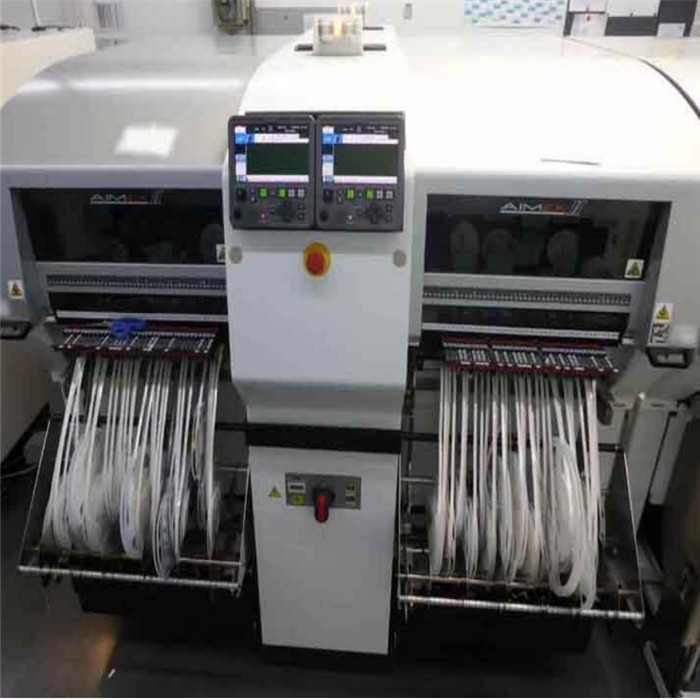

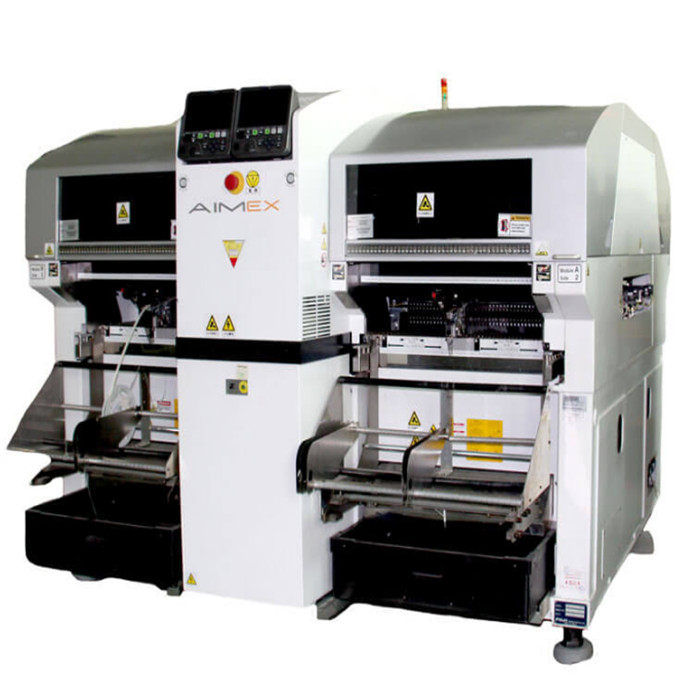

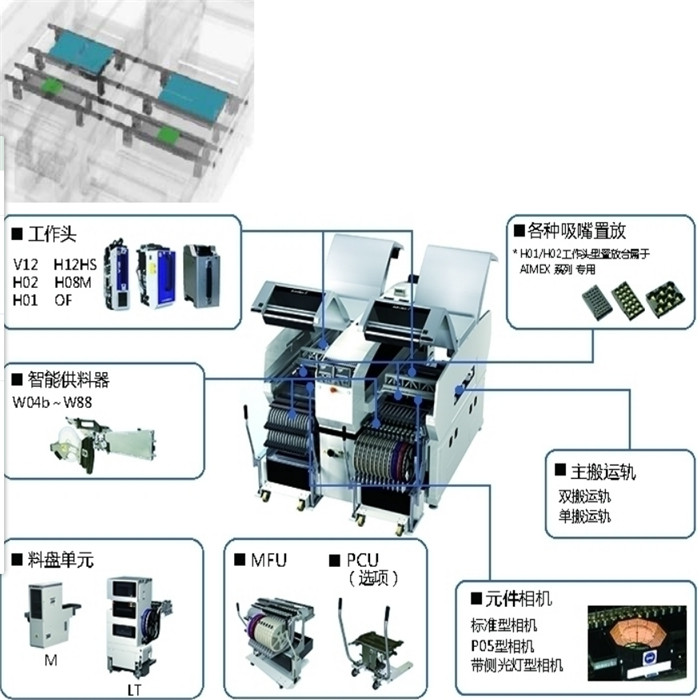

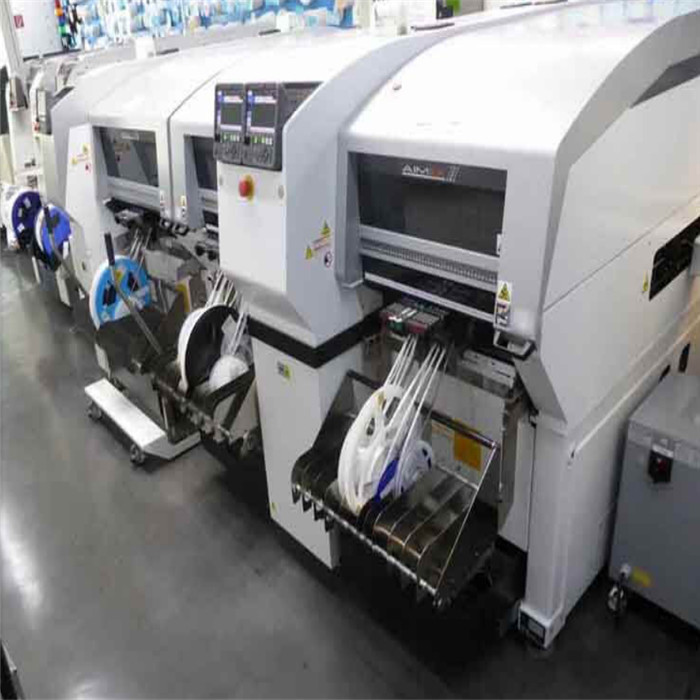

FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20 0FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20 1FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20 2FUJI AIMEX IIICII 27000CPH Pick And Place Machine MAX20 3
