SMT Nozzle Cleaner introduction:
The automatic nozzle cleaning machine can automatically complete the nozzle cleaning and drying process. It is mainly used to clean small components such as 0603, 0402, 0201, 01005 and other high-precision nozzles.
Fully automatic is the latest nozzle cleaning machine developed by our company. In the design process of this nozzle cleaning machine, we used our company's rich fluid equipment development experience, foresighted the development trend of the nozzle cleaning machine, and absorbed a lot of customers' opinions and suggestions. Its advent created the nozzle cleaning New concept of machine.
The machine uses Mitsubishi PLC as the control core, adopts modular control, and adopts multiple protection measures in the design. It has a high degree of automation, strong reliability and excellent performance. The cleaning system of this machine adopts pulse boosting cleaning method, which is more efficient and cleaner than traditional models.
Main features of this SMT Nozzle Cleaner:
The appearance adopts streamline design, beautiful and elegant;
30 nozzles are used for cleaning at the same time to achieve high efficiency and energy saving;
Inspection window throughout the process, convenient for maintenance and operation;
All parts in contact with water are made of 304 stainless steel, anti-rust, anti-corrosion, firm and stable;
Humanized design, one-key start and stop can be realized by external buttons;
Using touch screen + PLC distributed control, stable and reliable performance;
Convenient operation, friendly interface and can switch between Chinese and English at any time.
It has a malfunction alarm and emergency braking system, with an overload protection system;
Use environmentally friendly and pollution-free industrial pure water (HP value 5-7 soft water);
The centralized collection of wastes is convenient for maintenance.
Use: professional cleaning for the SMT Nozzles
Specification
| Size (L x W x H) | 500 x 400 x 550 mm |
| Power (three phase two wire) | 2P2W, 220VAC 50/60HZ 20A |
| Power Supply | 250W |
| Air Source Pressure | 0.5 to 0.6 MPa (Normal Operation Time) |
| Weight | Approx 40KG |
| Total Power | 200W |
| Controll Mode | Touch Screen + PLC |
| Jet Pressure | ≤ 0.4 MPa |
| Liquid Type | Industrial Purified Water |
| Nozzle tray Capacity | 30 nozzles |
| Cleaning Nozzle | 0201 to 2512 (inch) |

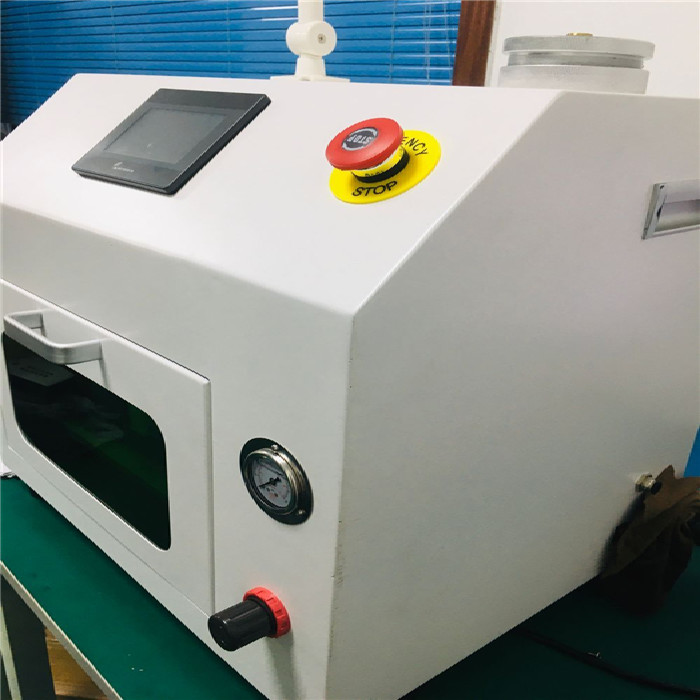

SMT Nozzle Cleaner Picture show:
