High-Speed Chip Shooter KE-3010A JUKI pick and place machine used
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Chip Shooter KE-3010A Machine parameters
| oard size | M size (330×250mm) | yes | |
|---|---|---|---|
| L size (4FFF10×360mm) | yes | ||
| L-Wide size (510×360mm) *1 | yes | ||
| XL size (610×560mm) | yes | ||
| Applicability to long PWB (M size)*2 | 650×250mm | ||
| Applicability to long PWB (L size)*2 | 800×360mm | ||
| Applicability to long PWB (L-Wide size)*2 | 1,010×360mm | ||
| Applicability to long PWB (XL size)*2 | 1,210×560mm | ||
| Component height | 6mm | yes | |
| 12mm | yes | ||
| Component size | Laser recognition | 0402(01005) ~ 33.5mm | |
| Vision recognition | Standard camera | 3mm*3 ~ 33.5mm | |
| High-resolution camera | 1.0×0.5mm*4 ~ 20mm | ||
| Placement speed | Chip | Optimum | 23,500CPH |
| IPC9850 | 18,500CPH | ||
| IC *5 | 9,000CPH *6 | ||
| Placement accuracy | Laser recognition | ±0.05 mm (±3σ) | |
| Vision recognition | ±0.04mm | ||
| Feeder inputs | Max.160 in case of 8mm tape (on a Electric double tape feeder)*7 |
||
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

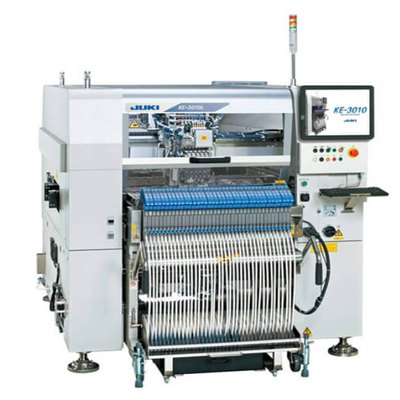

Chip Shooter KE-3010A picture show
