Original used pick and place machine Samsung SM310 Chip Mounter for LED assembly line
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
USED Samsung SM310 Chip Mounter
Speed 30000CPH, placement range: 0201 0402 0603 0805 ~ BGA
Rated power 3-phase 200/208/220/240/380 / 415V 50 / 60Hz 4KVA
Pressure / weight 0.49-0.78MPa 170L / min 1800kg
Equipment size L1650xW1680xH1530mm
Patch speed of 30,000 tablets / hour
Object Component Flight Vision 1005-22mm / Fixed Vision 0603-32mm
The station number up to 120 stations 8mm braid
Target substrate L50xW50-L460xW400mm
Component identification method
Full vision (Line scan optical)
Mounting efficiency
Linear Optical Scan LSO
CHIP 1608 30000 CPH (IPC9850)
CHIP 1005 29500 CPH (IPC9850)
CHIP 0603 29500 CPH (IPC9850)
SOP 20000 CPH (IPC9850)
Mounting accuracy
CHIP± 50 3σ / CHIP
Minimum spacing between components
0.1mm (0603) /0.15mm (1005)
Components can be mounted range
Component range
0603 ~ 24mmCHIP, QFP, BGA (0402 Option)
Minimum pin pitch / QFP, minimum ball pitch / BGA
0.65mm (QFP) /1.0mm (BGA)
Component height
H8mm (Line scan camera standard)
PCB board size
smallest size
50L * 40W
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

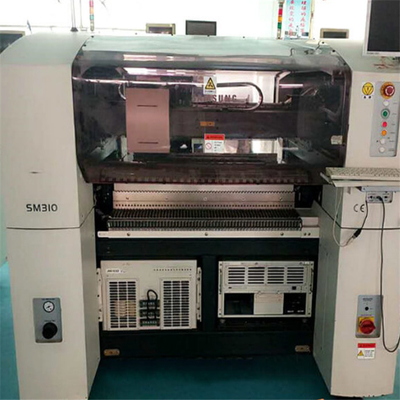

SM310 Chip Mounter picture show
