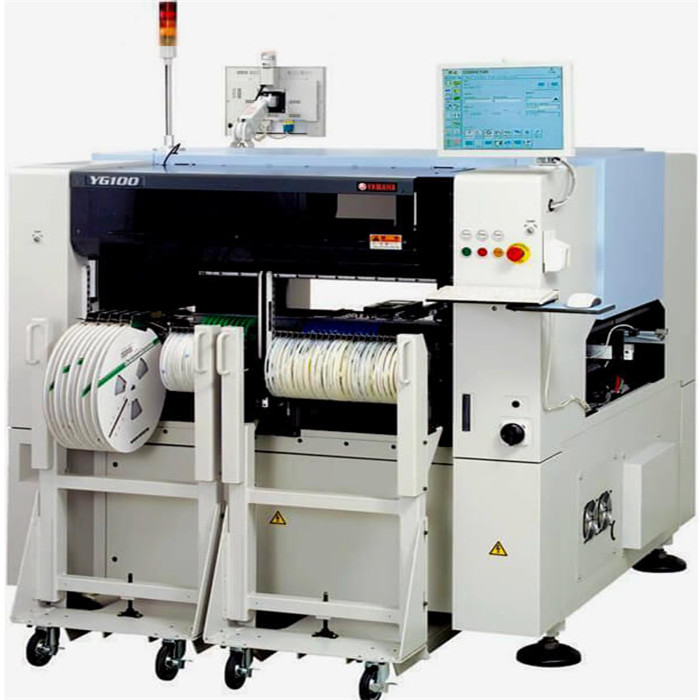

24000CPH Chip Mounter Machine QFP BGA 2.3kVA Yamaha YG100

24000CPH Chip Mounter Machine QFP BGA 2.3kVA Yamaha YG100
24000CPH Chip Mounter Machine QFP BGA 2.3kVA Yamaha YG100
video play

Large Image :  24000CPH Chip Mounter Machine QFP BGA 2.3kVA Yamaha YG100

Product Details:
Place of Origin: CHINA
Brand Name: electronic production line SMT machine Full Automatic High Speed used pick and place machine Yamaha Chip Mounter YG100
Certification: CE
Model Number: electronic production line SMT machine Full Automatic High Speed used pick and place machine Yamaha Chip Mounter YG100
Payment & Shipping Terms:
Minimum Order Quantity: SMT Chip Mounter RX-7R 1 set
Price: 30000-50000usd/set
Packaging Details: packing with wooden case
Delivery Time: within 15 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: 300 sets per month SMT Chip Mounter RX-7R
Usage: SMT Chip Mounter RX-7R
Theory: smt pick and place machine
Detailed Product Description
Brand Name:: Electronic Production Line SMT Machine Full Automatic High Speed Used Pick And Place Machine Yamaha Chip Mounter YG100 Skype: Sensenhenhao
Whastapp/wechat: +8613424013606 Component Size:: 03015~5mm
Placement Accuracy:: ±0.04mm(Cpk≥1) Placement Speed:: 24000CPH
Feeder Capacity:: Up To 56 Apparent Power:: 2.3kVA
High Light:

24000CPH Chip Mounter Machine

,

QFP BGA Chip Mounter Machine

,

2.3kVA Yamaha Chip Mounter

electronic production line SMT machine Full Automatic High Speed used pick and place machine Yamaha Chip Mounter YG100





WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



1. YAMAHA YG100 Placement Machine's advantages:
Mounting range from 01005 (Inch) micro-components to 45mm components.
Corresponding to the large substrate size L510xW440mm.
96 kinds of large component varieties.
Patch speed: 24000 CPH (0.15 seconds/CHIP)
Mounting accuracy: (μ+3σ)±0.03mm/CHIP
Repeatability (3σ): ±0.03mm/CHIP
Mounting PCB Size: L50×W50mm~L510×W440mm
Component Types Belt Packaging: 120 types (converted to 8mm tape)

2. YAMAHA YG100 Placement Machine's parameters:
SMD Components: 0402(MM)-45MMX45MM Components SOP SOJ PLCC QFP BGA
SMD components can be placed 100 kinds (8MM)
Mounter size: L1650XW1562X1470
Yamaha YG100 specification and details as following:

1) Board size: M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mmL-Type:

L460xW440 ~ L50xW50mm/t = 0.4 ~ 3.0mm * sATS use: L460xW440 ~ L50xW50mm

2) Mounting speed: Chip: 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3)

IPC9850 conditions: 17700CPH, Chip: 0.20 seconds / accessories

4) Mounting accuracy: Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ)
5) Mounting angle: (0.01±180° units)

6) Supported components: 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA,

CSP31mm, 100mm connector, IC socket.

7) Equipment Parts Height: 15mm

8) Part identification methods: multi-angle illumination digital multi-camera system (34 pixels),

multi-angle lighting good vision system (79 pixels).

9) Operation Software: YGOS (FullLine Mode, OnLineHelp, rich accessories and internal organs)

10) Optimization Software: Basic Services (Head and feeder Numbers,

Automatically Specified by the Installer)

11) Remote Control Software: Select (OnLine and OffLine Functions Available
12) Communication port: (Ethernet has Lan&RS232C)

13) Safety device: Head collision protection device in two modes: SoftLimit and HardLimit.

The CoverInterlock switch is used for head and collision prevention.

14) Power supply: 3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA
15) Air supply: 5.5kg/ (DryAir)/140/min
16) Size and Weight: 1,650(L)x1,562(W)x1,850(H)mm
17) Weight: 1,630kg
