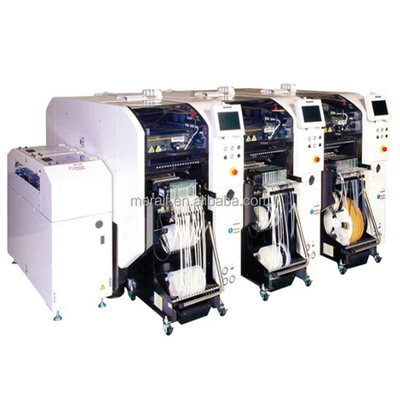

Name: NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic
Brand: Multi-Functional chip mounter
SKU: SMT Placement NPM-D3
Price: 60 USD
Availability: InStock
Rating: 4.5 (110 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Weight (KG): 1000

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty Of Core Components: 1 Year

Core Components: PLC

Warranty: 1 Year

Product Name: SMT Placement NPM-D3

Skype: Sensenhenhao

Whatsapp/wechat: +8613424013606

Model Number:: YSM20 SMDCHIPMOUNTER

Applicable Components:: Nts: 0402~5050

Usage:: SMD LED SMT

Application:: SMT Assembly Production Line

Film Materials:: Privacy Material

Power Supply:: AC220V 50Hz / AC110V

Lead Time: 7-30days

Port: Shenzhen

Basic Infomation

Place of Origin: Japan

Brand Name: Multi-Functional chip mounter

Model Number: SMT Placement NPM-D3

Payment & Shipping Terms

Packaging Details: SMT Placement NPM-D3

Supply Ability: 1000000 Piece/Pieces per Month SMT Placement NPM-D3

Product Description

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

SMT Placement NPM-D3 Specification:

Introduce of Panasonic Chip Mounter

The compact, dual-beam Panasonic NPM-D3 chip mounter offers a reinforced frame, advanced head and award-winning multi- recognition camera improve placement accuracy by 25%, while boosting IPC-9850 throughput 30% to 38,078 CPH per square meter.

model	Panasonic placement machine NPM-D3
pcb size	l 50mm × w 50mm ~ l 510mm × w 300mm;
Range of components that can be attached	Editing bandwidth: 8/12/16/24/32/44/56 mm; 01005 chip ~ l12 × w12 × t6.5
Number of material stations	68 stations/modules;
Mounting head number	2 cantilevers * 16 placement heads
Theoretical mounting speed	84,000cph,ipc9850(1608):63, 300cph;
Placement accuracy	±40μ/chip

Features & Benefits

1. Flexible board handling system converts to support single and multiple dual-lane operation modes

2. Compact footprint and dual-side operation maximizes factory floor space utilization and scalability

3. Integrates the industry’s only field-scalable multi- recognition camera that combines alignment, thickness and 3D coplanarity into one time-saving, process-improving step

Specification of Panasonic Chip Mounter

Placement tact time and accuracy values may differ slightly depending on conditions.

Please refer to the specification booklet for details.

1 Single-lane mode

2 1200mm long-board option

3 With High Production Mode active

4 For 03015 and 0201 metric placement: High Accuracy Mode and special calibration required

Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT

SMT Placement NPM-D3 picture show

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic 2

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic 5

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic 8

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic 10

NPM-D3 Modular SMT Placement NPM-D3 pick and place machine for Panasonic 11
