SMT SEMI cleaning machines for leadframe with QFN for semicon

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

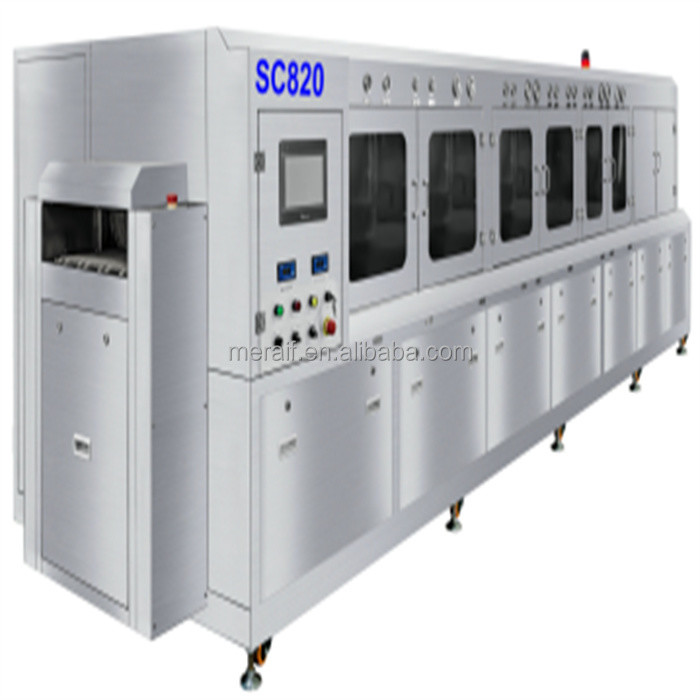

SMT SEMI cleaning machines for leadframe with QFN for semicon

SMT SEMI cleaning machines for leadframe with QFN for semicon
SMT SEMI cleaning machines for leadframe with QFN for semicon SMT SEMI cleaning machines for leadframe with QFN for semicon SMT SEMI cleaning machines for leadframe with QFN for semicon SMT SEMI cleaning machines for leadframe with QFN for semicon SMT SEMI cleaning machines for leadframe with QFN for semicon SMT SEMI cleaning machines for leadframe with QFN for semicon

Large Image :  SMT SEMI cleaning machines for leadframe with QFN for semicon

Product Details:
Place of Origin: Guangdong, China
Brand Name: Meraif
Payment & Shipping Terms:
Price: $175,000.00/sets 1-1 sets
Packaging Details: SMT SEMI cleaning machines package in vacuum wooden case
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Manufacturing Plant
Use: Other Industry Used: Electronic Industry
Power: 150 KW Warranty: 1 Year
Max. Pressure: Other Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Other
Key Selling Points: Long Service Life Weight (KG): 1000 Kg
Product Name: SMT SEMI Cleaning Machines Sky-pe: Sensenhenhao
Wha-tsapp: +86134240-13606 Chip Size Max: 600*400mm(W*H)
Chip Height: 100mm Conveyor Net Width: 600mm
Conveyor Net Speed: 0.1~1.5m/Min Conveyor Net Direction: Left To Right
Conveyor Net Height: 900±25mm Power Supply: AC380V,3P,50/60HZ
Showroom Location: None Port: Shenzhen

SMT SEMI cleaning machines for leadframe with QFN for semicon

sky-pe:sensenhenhao,wha-stapp:+8613424013606



SMT SEMI cleaning machines Features :

1)This system is constructed by SUS304 stainless steel material, It is an intergrated machine with very good acid and alkali resistance.

2)Flat net conveyor and special net transport mechanism, make it very stable.

3)Long wash section, prewash+wash1+wash2, perfect flux cleaning effect, more easier to set machine parameters.

4) Long rise section, pre-rinse+rinse+final risne,meet the requirement of cleaness. Powerful and high flow air blower, special design air knives, super air blow effect. 5)Long heat dry section and SUS316 air heater,special air knives, make it perfect air heat effect.

6)Several type of high volume spray nozzles, cover both high immerse and spray pressure requirements.

7) Equipped with low noise high performance air blower, to reduce noises and improve environment.

8) Equipped with liquid level sensor to protect the system working on normal water level and prevent water level abnormal to protect heaters and pumps.

9) Water tank bottom tilted design, so that water can drain off, for the convenience of water tanks maintenance.

10) Equipped with water flow meter for the operator to know water consumption.

11) Wash and rinse sections 3 layers seal: no liquid mist or water vapor leakout.

12) DIwater overflow replacement: DI water overflow replacement from final rinse to rinse section , rinse section to prerinse section.

13) Double liquid or water LS protection: Double LS in each liquid or water, double protection.

14) Double tempreture detector protection: Double tempreture detetors in each liquid tank ,water tank, hot air section, double protection.

15) DI water resistance real time monitoring: inlet DI water quality check.

16) Two sets of spray pressure and air meters

SC820 electric control safety protection

1) Mitsubishi PLC ,and touch panel operation interface, easy for operator to use this system

2) 3-color indicator and alarm buzzer design to ensure the operator to know system running state; If there is any abnormal situation happens,the buzzer will give out noises and red light will twinkle.

3) There is a light sensors on the entrance section of the system. If no chips are put in over setting time, the system will turn off pumps and air blowers to save energy and water. The system will awake when new chips are put in again.

4) Equipped with chips drop alarm function, monitoring chips in time.

5) Heat temperature adopt automatic PID and analog quantity control calculation system to firmly control temperature deviation,make temperature rise more stable.

6) Equipped with auto temperature control system and over temperature protection function to avoid damage to the system.

7) All pumps,air blowers,heaters are overload protected to avoid damage to them.

8)Current surge protection: all electric devices start every 2 seconds one by one to reduce instant current shock.

9) Power failure protection: Equipped with UPS system for net conveyor to send out 3D glasses trays at the time of sudden power failure.

10) Alarm when the system is in trouble, trouble information will be shown on touch panel for the convenience of trouble shooting.

SMT SEMI cleaning machines speec.:

S/N

ITEM

SPEC

1

Chip size max

600*400mm(W*H)

2

Chip height

100mm

3

Conveyor net width

600mm

4

Conveyor net speed

0.1~1.5m/Min

5

Conveyor net direction

Left to Right

6

Conveyor net height

900±25mm

7

Wash liquid temp

RT~80℃

8

Rinse water temp

RT~60℃

9

Hot air dry temp

RT~100℃

10

DI water supply

3~15L/Min

11

Air exhaust amount

42m³/Min

12

Power

150KW

13

Air supply

0.5~0.7Mpa,200~400L/Min

14

Power supply

AC380V,3P,50/60HZ

15

Machine size

L6600*W1800*H1850(mm)

16

Machine weight

3600KG



SMT SEMI cleaning machines picture show:
SMT SEMI cleaning machines for leadframe with QFN for semicon 0SMT SEMI cleaning machines for leadframe with QFN for semicon 1SMT SEMI cleaning machines for leadframe with QFN for semicon 2SMT SEMI cleaning machines for leadframe with QFN for semicon 3SMT SEMI cleaning machines for leadframe with QFN for semicon 4SMT SEMI cleaning machines for leadframe with QFN for semicon 5SMT SEMI cleaning machines for leadframe with QFN for semicon 6SMT SEMI cleaning machines for leadframe with QFN for semicon 7SMT SEMI cleaning machines for leadframe with QFN for semicon 8SMT SEMI cleaning machines for leadframe with QFN for semicon 9SMT SEMI cleaning machines for leadframe with QFN for semicon 10
