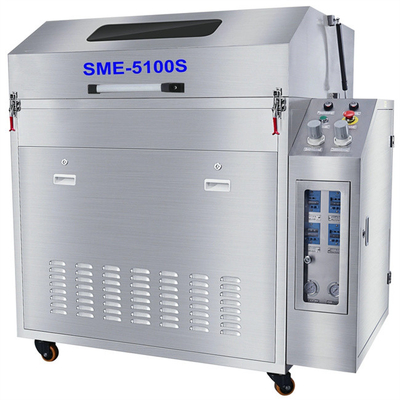

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine
SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine

Large Image :  SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: JIG cleaner machine
Payment & Shipping Terms:
Price: $24,000.00 - $50,000.00/sets
Packaging Details: Wave Oven Pallet Cleaning Machine package+plywood case
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Wave Solder Pallets Cleaning Machine
Condition: New Feature: Wave Solder Pallets Cleaning Machine
Use: Container / Bottle Cleaning Industry Used: Electronic Industry
Power: 2.3 KW Dimension(L*W*H): 1450*1650*1450( L*W*H) Mm
Warranty: 1 Year Max. Pressure: 7.5Mpa
Marketing Type: Ordinary Product Core Components: Wave Solder Pallets Cleaning Machine
Key Selling Points: Low Noise Level Weight (KG): 700 Kg
Product Name: SMT Pallet Cleaning Machine Skype: Sensenhenhao
Whatsapp: +86134240-13606 Basket Size:: Diameter 1000mmxH200mm
Material:: SUS304 Stainless Steel Drive:: Compressed-Air
Usage:: DIP And SMT Jig,Fixure, Pallet Clean Solvent:: Conformal Coating Solvent
Control:: Panel Control Nozzle Type:: Fan-Shaped Nozzle
Port: Shenzhen

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine

sky-pe:sensenhenhao,wha-stapp:+8613424013606



SME-5100S Conformal coating automatic and pneumatic removing spray cleaning machine for conformal pallets.
SME-5100S is used to conformal coating on conformal coating pallet. It is a pneumatic  spray cleaning machine, not use electric power, so conformal coating solvent can be used in this machine.



SME-5100S adopts solvent wash+solvent clean+compressed air blow dry process.



Pneumatic control, east operation and maintenance.

 SMT Pallet Cleaning Machine  Features:

1. Pneumatic control, never use electric power at all, absolutely clean safe.
2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
5. Solvent recycled to use and cost down.
6. Both solvent and aqueous detergent can be used.
7. The pallet are clean and dry after cleaning, standby and ready for use.
8. Standard equipped with auto fill-in and drain-out function.
9. Inner lock safety design, once door open, the machine stops immediately.

 SMT Pallet Cleaning Machine Spec:

Item SME-5100S
Cleaning basket size Φ1000 x H 200(mm)
Clean spray unit Upper/Lower/front side, all-round spray, basket rotate
2-level filter 1mm/20um filter
Clean time 5~15 Min
Rinse time 1~2 Min
Air dry time 5~10min
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 2~4kg/cm2
Air supply 0.5~0.7Mpa,800~1000L/min
Machine size L1450 x W1550 x H 1400 (mm)
Machine weight 520KG


Customer questions and Answers:

Q1: Is SME-5100S safe?

A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.



Q2: How SME-5100S clean products?

A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.



Comparison pictures before and after cleaning:

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 0SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 1

 SMT Pallet Cleaning Machine picture show:

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 2SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 3SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 4

SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 5SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 6SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 7SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 8SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 9SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 10SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 11SME-5100S JIG cleaner machine Conformal coating automatic and pneumatic removing spray SMT Pallet Cleaning Machine 12
