Electronics PCBA Auto Cleaning Machine Description:
Aqueous PCBA flux residual and solder balls ion contamination automatic cleaning machine is an off-line, compact, energy-saving and environmental protection machine.
With its excellent cleaning performance. SME-5600 PCBA cleaing n machine can effectively clean flux on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Each PCBA cleaning industries,like: military,aviation, aerospace, medical, new energy, automotive electronics industries...
Electronics PCBA Auto Cleaning Machine advantages:
1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.
2. 3 spray rods, 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3. All processes are visible through a large observation window.
4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.
5. Standard liquid and DI water fliter.
6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.
7. Compressed air blow off pipes and pumps, save liquid.
8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9. Totally SUS304 structure, solide, acid and alkali corrision-proof
Electronics PCBA Auto Cleaning Machine spec:
| ITEM | SPEC |
| Cleaning basket size | L610xW560xH100mmx 2layers |
| Diluent liquid tank capacity | 60L |
| Spray liquid tank capacity | 18L |
| Concentrate tank capacity | 30L |
| Cleaning time | 5~20min |
| Rinse time | 1~2 min/times |
| Rinse times | 1~10times |
| Dry time | 10~30min |
| Diluent liquid heat temp | room temp ~60ºC |
| PCB dry time | room temp~99ºC |
| Resistivity range | 0~18MΩ |
| Liquid filter | 0.2um |
| DI water filter | 0.2um |
| Air filter | 10um |
| Vent size | φ76XH50(mm) |
| Power supply | AC380, 3 Phases, 50/60Hz, 30KW |
| Air supply | 0.5Mpa, 400L/Min |
| Machine size | L1300xW1200x1850(mm) |
| Machine weight | 600KG |
Q1: What is the cycle time of SME-5600 batch cleaning machine?
A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.
Q2: What liuqid can be used in SME-5600 to clean PCBA?
A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid wash, DI water rinse.
Q3: Have many pcbas can SME-5600 clean in one cycle?
A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.
PCBA comparison pictures before and after cleaning:

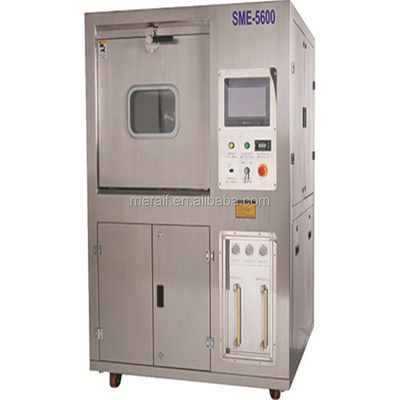

Electronics PCBA Auto Cleaning Machine picture show:
