SME-5100 Double-Station 1000mm Diameter Round Basket jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

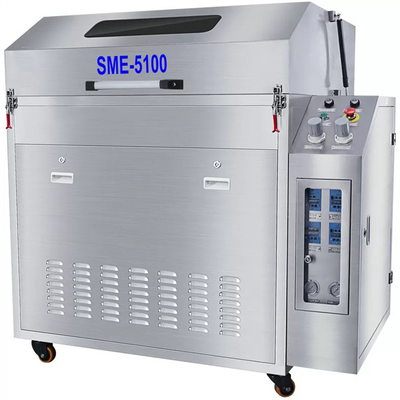

SME-5100 Double-Station 1000mm Diameter Round Basket jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine
SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

Large Image :  SME-5100 Double-Station 1000mm Diameter Round Basket jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Wave Oven Pallet Cleaning Machine
Payment & Shipping Terms:
Price: $24,000.00 - $50,000.00/sets
Packaging Details: Wave Oven Pallet Cleaning Machine package+plywood case
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Wave Solder Pallets Cleaning Machine
Condition: New Feature: Wave Solder Pallets Cleaning Machine
Use: Container / Bottle Cleaning Industry Used: Electronic Industry
Power: 2.3 KW Dimension(L*W*H): 1450*1650*1450( L*W*H) Mm
Warranty: 1 Year Max. Pressure: 7.5Mpa
Marketing Type: Ordinary Product Core Components: Wave Solder Pallets Cleaning Machine
Key Selling Points: Low Noise Level Weight (KG): 700 Kg
Product Name: Wave Oven Pallet Cleaning Machine Skype: Sensenhenhao
Whatsapp: +86134240-13606 Basket Size:: Diameter 1000mm
Cleaning Height:: 400mm As Max Clean Time: 5~15min: Dry Time: 5~15min
Rinse Time: 2~3min: Liquid Tank Capacity: 80L Water Tank Capacity: 80L: Filter: 20um
Power:: Compressed-air, No Electric Power Lead Time: 35-40days
Port: Shenzhen

SME-5100 Double-Station 1000mm Diameter Round Basket jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

sky-pe:sensenhenhao,wha-stapp:+8613424013606



 SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine.

  It is pneumatic cleaning machine,no electric power,safety machine.

  Both solvent and water-based liquid can be used in this machine.

 Pneumatic mahine, simple operation, simple maintenance.



SME-5100 Wave Oven Pallet Cleaning Machine introduction:



SME-5100pneumatic Pallet Cleaning Machine is used to clean flux, dusts on the surface of  soldering wave amchine pallets,trays, reflow oven coolers , wave-soldering oven claw, chains, and nets…etc. SME-5100 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically perform wash, rinse and dry process by just pushing start key. The pallets are very clean after cleaning.



SME-5100 Wave Oven Pallet Cleaning Machine features:



1. Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2. 1000mm diameter big cleaning round basket, can clean 20~40 pcs pallets at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 3~4kg/cm2, make it throughly clean of whole Pallets.
5. Mechanical timer and valves control, cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ compressed air dry, all process complete in a cycle automatically.
7. Both water base liquid and solvent can be used.
8. Closed-loop clean and rinse, clean liquid and rinse water are cycling filtered and reused in the machine.
9. Standard equipped liquid and water auto fill in and discharge function.
10.The Pallet are clean and after cleaning, standby and ready to use.



SME-5100 Wave Oven Pallet Cleaning Machine specficaiton:

S/N ITEM SPEC
1 Cleaning basket size :Φ1000mm× 200mm(H),cleaning height:400mm
2 Cleaning tank capacity 80L( maximum )
3 Rinse tank capacity 80L( maximum )
4 Cleaning method 360°Spray Rotary Cleaning
5 Dry method Compressed air blow dry
6 Wash time 10~20min
7 Rinse time 1~2min
8 Dry time 5~10min
9 Fliter net 1 1mm
10 Filter net 2 100um
11 Filter 3 20um
12 Air supply 0.5~0.7Mpa
13 Air flow rate 800~1000L/min
14 Air vent size 130mm(Φ)×50mm(H)
15 Machine size L1450*W1550*H1400mm
16 Machine weight 400kg



Questions and Answers:



Q1: Why SME-5100 can use sovent like alchol to clean products?

A1: SME-5100 use air pumps, air motor, air valves, mechanical meters, so it is only need compressed-air as power.



Q2: Is SME-5100 safe?

A2: Yes, SME-5100 do not use electric power, no electricity, no sparks, so it is very safe even use slovent to clean products.



Q3: What kind of detergent can use in this machine?

A3: Yes, both water-based liquid and solvent can use in SME-5200.





Comparison pictures before and after cleaning:

SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 0SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 1

Wave Oven Pallet Cleaning Machine picture show:

SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 2SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 3SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 4

SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 5SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 6SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 7SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 8SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 9SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 10SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 11SME-5100 Double-Station 1000mm Diameter Round Basket  jig cleaner Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 12
