29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine

29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine
29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine

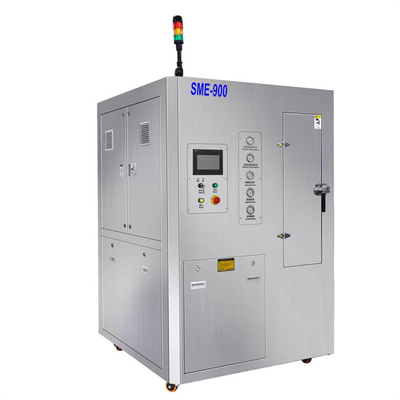

Large Image :  29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: ME-900 Stencil Cleaning Machine
Payment & Shipping Terms:
Price: $30,000.00 - $60,000.00/sets
Packaging Details: Smt Stencil Cleaning Machine packing with vacuum wooden case
Supply Ability: 100 Set/Sets per Month Smt Stencil Cleaning Machine
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: Stencil Cleaning Machine
Cleaning Process: Stencil Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Power: Pneumatic Stencil Cleaner
Dimension(L*W*H): L1300*W1400*H1970mm Warranty: 1 Year
Max. Pressure: Stencil Cleaning Machine Marketing Type: Stencil Cleaning Machine
Core Components: Stencil Cleaning Machine Key Selling Points: Stencil Cleaning Machine
Weight (KG): 720 Kg Product Name: Stencil Cleaning Machine
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
Stencil Size:: 35*29*2 Inch (L*W*T) As Max Rinse Water:: DI Water Or DM Water Or Purifier Water
Wash Liquid:: Water-based Solder Paste Liquid Dry:: Hot Air Blow Dry
Rinse Time:: 2~3min Liquid/water Filter:: 1um/1um Real Time
Dry Time: 4~6min: Wah Time: 4~6min Port: Shenzhen

29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine

skype:sensenhenhao,whastapp/wechat:+8613424013606



 Smt Stencil Cleaning Machine Description:



SME-850 29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine is a spray type stencil cleaning machineSME-850 uses aqueous liquid to clean, DI water or DM water to rinse, hot air blow dry; Liquid and water can add and discharge automatically.



SME-850 cleaning range: solder paste stencil, red glue stencil, red glue cooper stencilred glue plastic stencil, mis-printed PCB and squeegees.



SME-850 cleaning process: water-based liquid wash--DI water rinse--hot air blow dry.



SME-850 has the stable mechanism structure--4 cleaning spray rods and 4  air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..

 Smt Stencil Cleaning Machine Features:


1.  All kinds of SMT  solder paste stencil, red glue cooper stencil/ plastic stencil, misprint PCB and squeegees.
2.  4 spray rods and 4 air knives fixed while stencil moves back and forth , relaible and stable mechanism.
3.  Up to L35*W29*T2 inches big stencil.
4.  Machine process is visible through a large observation window.
5.  Real-time liquid and DI water filter system.
6.  Compressed air blow out remain liquid in pipes and pump. This function saves liquid.
7.  SUS304 stainless steel material, acid and alklic corrision protection .
8.  PLC control and TP English operation interface.

9.  Liquid temperature, liquid wash time ,DI water rinse time ,DI water temperature, hot air dry time and temperature can be set and modified.

10. Liquid and DI water auto add and discharge fuction.

11. Liquid and DI water filter timely repalce alarm function.

12. World famous Schneider,Mitsubishi, SMC, CKD, Omron electric and pueumatic parts.



 Smt Stencil Cleaning Machine  Spec:

S/N Item SPEC Remarks
1 stencil size L35*W29*T2 inches
2 wash time 3~5min
3 rinse time 1~2min
4 dry time 3~6min
5 wash liquid temp room temp~60℃
6 DI water temp room temp~60℃
7 hot air temp room temp~100℃
8 liquid tank/water tank capacity 60L/60L
9 liquid/water spray pressure 4~5kg/cm2
10 liquid type water-based liquid
11 Water type DI water or DM water
12 liquid/water filter precision 1um/1um
13 liquid heat power 9KW
14 water heat power 9KW
15 hot air heat power 6KW
16 electric power and air supply AC380V,3P,50/60Hz,28KW,0.5Mpa
17 Machine size L1300*W1400*H1970mm
18 Machine weight 720kg



Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1:  Because SME-850 use water-based liquid which is safety, environmental-protection and easy to rinse.



Q2: Can SME-850 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.



Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.



Q3: How SME-850 clean mis-printed PCB, squeegees and frameless stencils?

A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.



Comparisonpictures before and after cleaning:

29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 029*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 1

Automatic PCB Cleaning Machine  picture show:

29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 229*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 329*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 4







29*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 529*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 629*29 Inch Smt Stencil Cleaning Machine Aqueous Liquid Wash DI Water Rinse Hot Air Dry Solder Paste Cleaning Machine 7
