SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine
SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

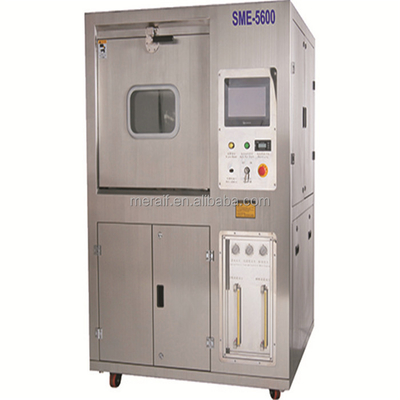

Large Image :  SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: ME-5600 Off-line Automatic PCBA Cleaning Machine
Payment & Shipping Terms:
Price: $35,000.00/sets 1-1 sets
Packaging Details: PCBA Cleaning Machine package+plywood case
Supply Ability: 100 Set/Sets per Month PCBA Cleaning Machine
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: PCBA Cleaning Machine
Cleaning Process: PCBA Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Material: PCBA Cleaning Machine
Power: Pneumatic Stencil Cleaner Dimension(L*W*H): L1300 X W1200 X H850(mm)
Warranty: 1 Year Max. Pressure: PCBA Cleaner
Marketing Type: PCBA Cleaner Machinery Test Report: PCBA Cleaner
Video Outgoing-inspection: PCBA Cleaner Warranty Of Core Components: PCBA Cleaner
Core Components: PCBA Cleaner Key Selling Points: PCBA Cleaner
Weight (KG): 600 Kg Product Name: PCBA Cleaning Machine
Power/Air Supply: AC380V/50A/50HZ,30KW,0.5Mpa Cleaning Basket Size: L610 X W560 X H100 (mm) X2 Layers
Spray Tank Capacity: 17L Concentrate Capacity: 32L
Dilution Capacity: 60L Clean Time: 5~20min
Rinse Time: 1~2min/times Skype: Sensenhenhao
Whatsapp/wechat: +8613424013606 Port: Shenzhen

SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine

skype:sensenhenhao,whastapp/wechat:+8613424013606



PCBA Cleaning Machine Description:



Flux Residual PCBA Cleaning Machine Chemical clean and DI water rinse machine. SME-5600 is a multi-spec and small batch PCBA flux residual cleaning machine for all kinds of PCBA. It  is a large size, off-line, PCBA cleaning machine.  It can clean PCBA as big as L650*W650mm.

Super cleaning performance. SME-5600L PCBA cleaning machine can clean flux on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.


Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.



SME-5600L PCBA Cleaning Machine features:


1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.


2. 2-layers bigger cleaning basket: 700mm(L) ×700mm(W) × 200mm(H) x2 layers.


3. All processes are visible through a large observation window.


4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.


5. Standard liquid and DI water fliter.



6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.


7. Compressed air blow off pipes and pumps, save liquid.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


SME-5600L PCBA Cleaning Machine spec:



ITEM SPEC
Cleaning basket size L700xW700xH200mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Cleaning time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 0.2um
DI water filter 0.2um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1400xW1400x2100(mm)
Machine weight 720KG

Customer Question & Answer

Ask something for more details

Q1: What is the cycle time of SME-5600L batch cleaning  machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600L to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.



Q3: Have many pcbas can SME-5600L clean in one cycle?

A3: L200*W100mm  size PCBA for example, it can clean 40~50pcs.

Q4: Does SME-5600L need DI water?

A4: Yes, it need DI water for rinse to remove liquid residual and ions on PCBA surface.

Comparison picutures before and after cleaning:

SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 0SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 1

PCBA Cleaning Machine   picture show:

SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 2SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 3









SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 4SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 5SMT Automatic Ultrasonic Stencil Hole Cleaning Machine Flux Residual PCBA Cleaning Machine Chemical clean machine 6
