Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux

Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux
Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux

Large Image :  Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux

Product Details:
Place of Origin: Guangdong, China
Brand Name: ME-5600 off-line PCB/PCBA Cleaning Machine
Payment & Shipping Terms:
Price: $33,800.00/sets 1-1 sets
Packaging Details: PCBA Cleaning Machine package+plywood case
Supply Ability: 100 Set/Sets per Month PCBA Cleaning Machine
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Electronic Factory
Condition: New Use: PCBA Cleaning Machine
Cleaning Process: PCBA Cleaning Machine Cleaning Type: Industrial Ultrasonic Cleaner
Industry Used: Electronic Industry Material: PCBA Cleaning Machine
Power: Pneumatic Stencil Cleaner Dimension(L*W*H): L1300 X W1200 X H850(mm)
Warranty: 1 Year Max. Pressure: PCBA Cleaner
Marketing Type: PCBA Cleaner Machinery Test Report: PCBA Cleaner
Video Outgoing-inspection: PCBA Cleaner Warranty Of Core Components: PCBA Cleaner
Core Components: PCBA Cleaner Key Selling Points: PCBA Cleaner
Product Name: PCBA Cleaning Machine Power/Air Supply: AC380V/50A/50HZ,30KW,0.5Mpa
Cleaning Basket Size: L610 X W560 X H100 (mm) X2 Layers Spray Tank Capacity: 17L
Concentrate Capacity: 32L Dilution Capacity: 60L
Clean Time: 5~20min Rinse Time: 1~2min/times
Skype: Sensenhenhao Whatsapp/wechat: +8613424013606
After Warranty Service: Online Support Local Service Location: None
Showroom Location: None After-sales Service Provided: Video Technical Support
Port: Shenzhen

Factory supply Automatic SMT PCB/PCBA Cleaning Machine  for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux

skype:sensenhenhao,whastapp/wechat:+8613424013606



PCBA Cleaning Machine Description:

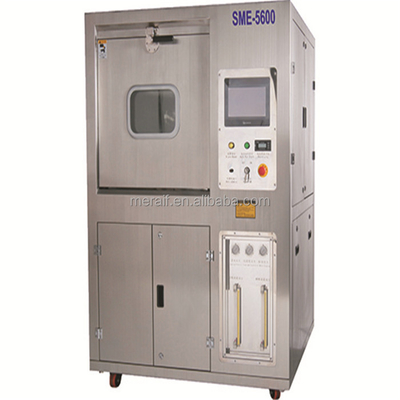

SME-5600 is an off-line, compact, energy-saving and environmental protection, batch cleaning, high-end PCBA cleaning machine. SME-5600 can automatically complete the cleaning, rinsing, drying process in the clean chamber by just push one start key.
SME-5600 PCBA cleaning machine can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Mainly used in aviation, aerospace, medical, new energy, automotive electronics, meters industries, especially suitable for small amount, multiple types PCBA cleaning.
off-line  PCB/PCBA Cleaning Machine Features:
1.Through clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.
2.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3.State of the process is visible through a large observation window.
4.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
5.Easy operation interface, quick setting clean parameters. Different passwords can be set.
6.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
7.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
8.High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9.Totally SUS304 structure, very firm and attractive.

off-line  PCB/PCBA Cleaning Machine  picture show:

Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux 0Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux 1





PCBA Cleaning Machine Spec:

Item

SME-5600 spec

Cleaning basket size

L610 x W560 x H100 (mm) x2 layers

Spray tank capacity

17L

Concentrate capacity

32L

Dilution capacity

60L

Clean time

5~20min

Rinse time

1~2min/times

Rinse times

1~99times

Hot air dry time

10~30min

Detergent heat temp

Room temp~60℃

PCB hot air day temp

Room temp~99℃

Resistivity range

0~18MΩ

Detergent filter

0.22um

Rinse water pipe out filter

0.22um

Air filter

10um

DI water supply

30~65L/Min

DI water pressure

0.2~0.4Mpa

Vent size

Φ76xH50(mm)

Power/Air supply

AC380V/50A/50HZ,30KW,0.5Mpa

Machine size

L1300 x W1200 x H1850(mm)

Machine weight

460KG

Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux 2Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux 3Factory supply Automatic SMT PCB/PCBA Cleaning Machine for Cleaning PCBA Flux Residual, CMOS Flux and Partical, Semicon Flux 4
