Meraif SME-5600 Automatic PCBA Cleaning Machine SMT Cleaning Machine for PCBA Flux Residual
skype:sensenhenhao,whastapp/wechat:+8613424013606
PCBA Cleaning Machine Description:
SME-5600 is an off-line, compact, energy-saving and environmental protection, batch cleaning, high-end PCBA cleaning machine. SME-5600 can automatically complete the cleaning, rinsing, drying process in the clean chamber by just push one start key.
SME-5600 PCBA cleaning machine can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Mainly used in aviation, aerospace, medical, new energy, automotive electronics, meters industries, especially suitable for small amount, multiple types PCBA cleaning.
PCBA Cleaning Machine Features:
1.Through clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.
2.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.

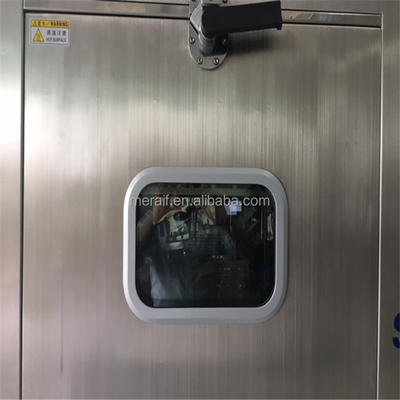

3.State of the process is visible through a large observation window.
4.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
5.Easy operation interface, quick setting clean parameters. Different passwords can be set.
6.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
7.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
8.High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9.Totally SUS304 structure, very firm and attractive.
PCBA Cleaning Machine picture show:
PCBA Cleaning Machine Spec:
| Item | SME-5600 spec |
| Cleaning basket size | L610 x W560 x H100 (mm) x2 layers |
| Spray tank capacity | 17L |
| Concentrate capacity | 32L |
| Dilution capacity | 60L |
| Clean time | 5~20min |
| Rinse time | 1~2min/times |
| Rinse times | 1~99times |
| Hot air dry time | 10~30min |
| Detergent heat temp | Room temp~60℃ |
| PCB hot air day temp | Room temp~99℃ |
| Resistivity range | 0~18MΩ |
| Detergent filter | 0.22um |
| Rinse water pipe out filter | 0.22um |
| Air filter | 10um |
| DI water supply | 30~65L/Min |
| DI water pressure | 0.2~0.4Mpa |
| Vent size | Φ76xH50(mm) |
| Power/Air supply | AC380V/50A/50HZ,30KW,0.5Mpa |
| Machine size | L1300 x W1200 x H1850(mm) |
| Machine weight | 460KG |
