Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process
Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

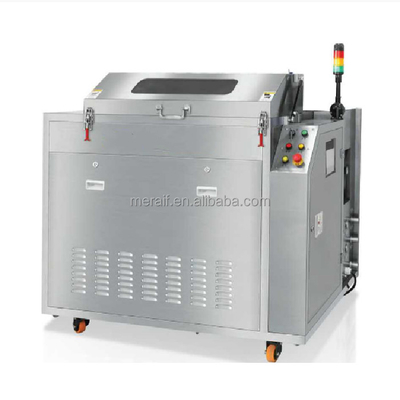

Large Image :  Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

Product Details:
Place of Origin: Guangdong, China
Brand Name: SMT JIG cleaning machine
Payment & Shipping Terms:
Price: $23,500.00/sets 1-4 sets
Packaging Details: Jig fixture cleaning machine package+plywood case
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Machine Type: HIGH PRESSURE CLEANER Applicable Industries: Smt Electroniuc Factory
Use: Other Industry Used: Electronic Industry
Power: 1.5 KW Warranty: 1 Year
Max. Pressure: Other Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: SMT JIG Cleaning Machine
Key Selling Points: Other Weight (KG): 550 Kg
Product Name: Jig Fixture Cleaning Machine Sky-pe: Sensenhenhao
Wha-tsapp: +86134240-13606 Leaning Basket Size: Diameter 1000mm X H 200mm. Special Size Option
Spray Unit: Upper/lower/front Side,720°all-around Spray 3-level Filter System: 1mm /50um/20um Filters
Clean Tank Capacity: 80L Rinse Tank Capacity: 80L
Clean Spray Pressure: 5~6 Kg/cm2 Clean Time: 5~15 Min
Showroom Location: None Port: Shenzhen

Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process

sky-pe:sensenhenhao,wha-stapp:+8613424013606



Jig fixture cleaning machine Description:

SME-5200 Fixture Cleaning Machine is used to clean grease, flux, dusts on the surface of all kinds of SMT fixtures,tray, reflow oven cooler and filter, wave-soldering oven claw, chains, and nets…etc.
SME-5200 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt SMT fixtures on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The fixtures after cleaning is very clean and dry, ready to use at any time.

Jig fixture cleaning machine Features:
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2.1 meter diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3.Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4.Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5.PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6.Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7.Clean liquid and water heat and temperature keeping function.
8.Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9.Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.

Jig fixture cleaning machine Machine Spec:

Item

SME-5200 Spec

Cleaning basket size

Φ1000mm x H 200mm. Special size option

Spray unit

Upper/lower/front side,720°all-around spray

3-level filter system

1mm /50um/20um filters

Clean tank capacity

80L

Rinse tank capacity

80L

Clean spray pressure

5~6 kg/cm2

Clean time

5~15 Min

Rinse time

1~3 Min

Dry time

10~20Min

Clean detergent heat temp

Room temp~80℃

Rinse water heat temp

Room temp~80℃

Hot air heat temp

Room temp~90℃

Clean pump power

2.2KW

Clean detergent power

9KW

Hot air heat power

9KW

Air blower power

4.0KW

Air supply

0.5~0.7Mpa

Power supply

3 P,AC 380V,50/60HZ,33KW

Machine size

L1380 x W2100 x H 1400 (mm)

Machine weight

500KG

Jig fixture cleaning machine picture show:

Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 0Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 1Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 2Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 3Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 4Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 5Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 6Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 7Factory price Automatic smt ultrasonic Jig fixture cleaning machine in SMT soldering process 8
