OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

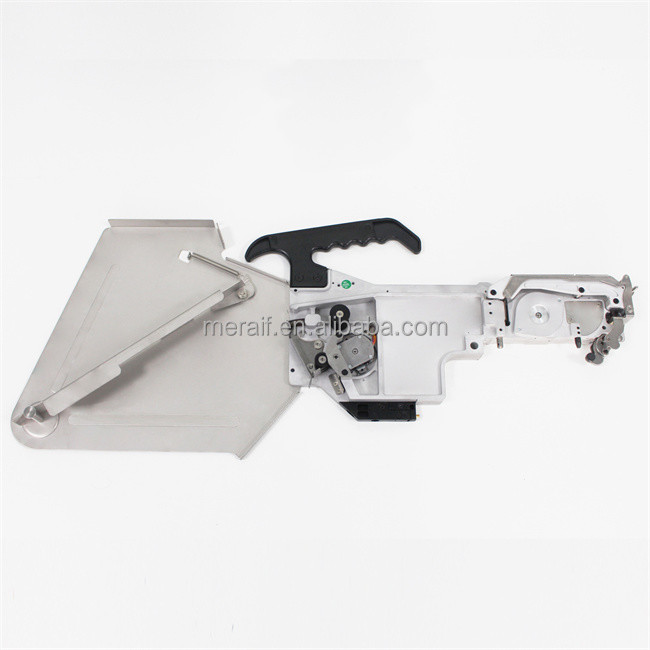

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine
OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine

Large Image :  OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: SMT YAMAHA FEEDER
Model Number: Electric Tape FEEDER 32mm Feeder
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $575.00/pieces 10-199 pieces
Packaging Details: Electric Tape FEEDER 32mm Feeder packing with foam +carton
Supply Ability: 2000 Piece/Pieces per Month Electric Tape FEEDER 32mm Feeder
Detailed Product Description
Condition: New Weight (KG): 3
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: YAMAHA FEEDER FS 8*2MM
Warranty: 1 Year Item: Electric Tape FEEDER 32mm Feeder
Applicable Models:: YAMAHA YV Series YG Series Alternative Feeder:: FV CL FT FS Feeder
Whatsapp: +8613424013606 Wechat: JoyLY0322
Skype: Sensenhenhao Web: Https://www.smtproductionline.com
MOQ: 10PCS Lead Time: 3-7days
Package: Carton Port: Shenzhne

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine

whatsapp:+8613424013606, skype:sensenhenhao,wechat:JoyLY0322

 OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 0

We are smt solution provider more than 16yeras.

All smt machine line and parts, PCBA cleaner machine line we can support you.

 OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 1

OEM electronic feeder for Yamaha YV YG series pick and place machine

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 2

Electric Tape FEEDER 32mm Feeder parameters

Model: YV-08 / 12 / 16/ 24/ 32mm

Applicable models: YAMAHA YV series YG series

Alternative Feeder: FV CL FT FS Feeder

Main body material: aluminum alloy

Positioning method: double pin guide rail positioning connecting rod locking

Electrical interface: single-pin contact interface

Voltage: DC24V

Current: 0.5A | 2.5A MAX.

Communication method: Pulse

Drive mode: electric drive

Feeding speed: 68ms/pcs 4mm pitch

Feeding accuracy: X axis ±0.05mm, Y axis ±0.05mm

Feeding speed: 80000CPH

Lamination recycling: inclined-pull coiling mechanism

Applicable package: 8/12/16/24/32/44/56MM standard SMT package

Applicable materials: all materials that can be packaged in standard YMH

Refueling method: overall refueling, tape refueling

Working temperature: temperature -20~65℃

Working humidity: humidity 20~90%RH, no condensation

Storage temperature: temperature -40~85℃

Storage humidity: humidity 10~95%

Aging test: 72 hours of continuous work without abnormality

Operation record: complete and consistent

Service life :>=20K hrs.MIL-HDBK-217F(25℃)

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 3

The stepper motor replaces the cylinder drive of the traditional feeder, and the precision copper gear replaces the mechanical link drive.

By taking the electrical contact pin, connecting the 24V safety power supply, the shielding sensor converts the mechanical signal of the placement machine

An electrical signal is generated to control the feeder to work.

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 4

Upgrade advantage: Wide range of electronic material models. 8mm is compatible with two packaging methods of paper tape, and 1mm/2mm/4mm steps can be switched with one key. One AREED 8mm electric feeder is used instead of the original three 8mm feeders.



OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 5

Precision advantage: The drive motor runs with a smaller amplitude than the cylinder, which reduces the material deviation caused by vibration. High-precision feeding gears are matched with high-precision motors to ensure accurate feeding every time. The self-developed FEEDER calibrator can capture the X/Y coordinate value of each feeding, and calculate the CA\CP and CPK values to judge the consistency of the feeding accuracy of each FEEDER.



OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 6

Speed advantage: feeding speed: Omron grating sensor quickly senses machine signal, self-developed control board software algorithm is more scientific and reasonable, stepper motor is equipped with acceleration gear, FEEDER feeding speed exceeds the pick-up limit of placement machine.

  Line change speed: stripping tape directly above, with self-contained film storage room; batch line change without dismantling the feeder, automatic warehouse opening reminder when the material is full, truly realizing the function of non-stop material change, and the line change efficiency can be increased by more than three times.

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 7

Compatibility advantage: Applicable to all YAMAHA machinery FEEDER platform machines on the market. It is convenient to install conductive brackets, without changing or destroying the original lines, which is simple, safe and effective. After the change, it does not interfere with the original mechanical feeder position, and can be used alternately at the same time.

OEM Electric Tape FEEDER 32mm Feeder for YAMAHA pick and place machine 8
