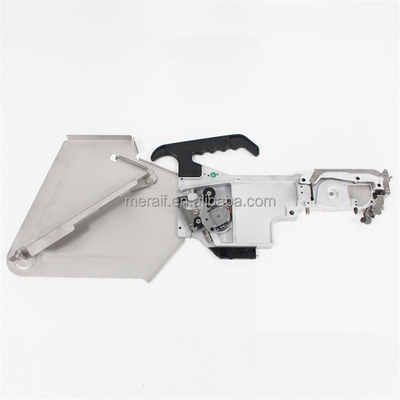

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder

10 pieces
MOQ
$140.00/pieces 10-199 pieces
Price
OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 3
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: YAMAHA FEEDER FS 8*2MM
Warranty: 1 Year
Item: FT 8*2mm Feeder
Applicable Models:: YAMAHA YV Series YG Series
Alternative Feeder:: FV CL FT FS Feeder
Whatsapp: +8613424013606
Wechat: JoyLY0322
Skype: Sensenhenhao
Web: Https://www.smtproductionline.com
MOQ: 10PCS
Lead Time: 3-7days
Package: Carton
Port: Shenzhne
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SMT YAMAHA FEEDER
Model Number: yamaha feeder KJW-M1100-000
Payment & Shipping Terms
Packaging Details: FT 8*2mm feeder packing with foam +carton
Supply Ability: 2000 Piece/Pieces per Month FT 8*2mm feeder
Product Description

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder

whatsapp:+8613424013606, skype:sensenhenhao,wechat:JoyLY0322

 OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 0

We are smt solution provider more than 16yeras.

All smt machine line and parts, PCBA cleaner machine line we can support you.

 OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 1

OEM electronic feeder for Yamaha YV YG series pick and place machine

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 2

FT 8*2mm feeder parameters

Model: YV-08 / 12 / 16/ 24/ 32mm

Applicable models: YAMAHA YV series YG series

Alternative Feeder: FV CL FT FS Feeder

Main body material: aluminum alloy

Positioning method: double pin guide rail positioning connecting rod locking

Electrical interface: single-pin contact interface

Voltage: DC24V

Current: 0.5A | 2.5A MAX.

Communication method: Pulse

Drive mode: electric drive

Feeding speed: 68ms/pcs 4mm pitch

Feeding accuracy: X axis ±0.05mm, Y axis ±0.05mm

Feeding speed: 80000CPH

Lamination recycling: inclined-pull coiling mechanism

Applicable package: 8/12/16/24/32/44/56MM standard SMT package

Applicable materials: all materials that can be packaged in standard YMH

Refueling method: overall refueling, tape refueling

Working temperature: temperature -20~65℃

Working humidity: humidity 20~90%RH, no condensation

Storage temperature: temperature -40~85℃

Storage humidity: humidity 10~95%

Aging test: 72 hours of continuous work without abnormality

Operation record: complete and consistent

Service life :>=20K hrs.MIL-HDBK-217F(25℃)

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 3

The stepper motor replaces the cylinder drive of the traditional feeder, and the precision copper gear replaces the mechanical link drive.

By taking the electrical contact pin, connecting the 24V safety power supply, the shielding sensor converts the mechanical signal of the placement machine

An electrical signal is generated to control the feeder to work.

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 4

Upgrade advantage: Wide range of electronic material models. 8mm is compatible with two packaging methods of paper tape, and 1mm/2mm/4mm steps can be switched with one key. One AREED 8mm electric feeder is used instead of the original three 8mm feeders.



OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 5

Precision advantage: The drive motor runs with a smaller amplitude than the cylinder, which reduces the material deviation caused by vibration. High-precision feeding gears are matched with high-precision motors to ensure accurate feeding every time. The self-developed FEEDER calibrator can capture the X/Y coordinate value of each feeding, and calculate the CA\CP and CPK values to judge the consistency of the feeding accuracy of each FEEDER.



OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 6

Speed advantage: feeding speed: Omron grating sensor quickly senses machine signal, self-developed control board software algorithm is more scientific and reasonable, stepper motor is equipped with acceleration gear, FEEDER feeding speed exceeds the pick-up limit of placement machine.

  Line change speed: stripping tape directly above, with self-contained film storage room; batch line change without dismantling the feeder, automatic warehouse opening reminder when the material is full, truly realizing the function of non-stop material change, and the line change efficiency can be increased by more than three times.

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 7

Compatibility advantage: Applicable to all YAMAHA machinery FEEDER platform machines on the market. It is convenient to install conductive brackets, without changing or destroying the original lines, which is simple, safe and effective. After the change, it does not interfere with the original mechanical feeder position, and can be used alternately at the same time.

OEM smt yamaha feeder KJW-M1100-000 /KJW-M1100-022 FT 8*2mm feeder 8
