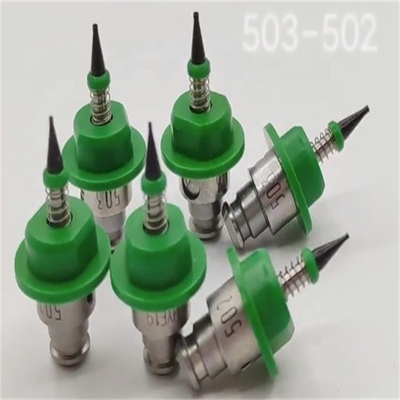

Juki Nozzles 501 502 503 504 505 Standard Juki SMT Nozzles For Pick And Place Machine
whatsapp:+8613424013606.skype:sensenhenhao,wechat:JoyLY0322
The JUKI nozzles have springs, the 700 series body is titanium gold, the 2000 series is white. The body is made of high quality steel, fine grinding of inner hole, heat treatment of materials, and the surface of 700 series is vacuum plated gold. 2000 series outer circle polishing electroplating white. The reflector plate is made of green plastic steel with open die pressing. The high-speed head of the nozzle material is made of ceramic and tungsten steel. The inner hole is well matched, the vacuum value is high, not easy to wear.
Full list of Nozzle for JUKI
| Part Numbwr | Description |
| 40001339 | 501 0.7×0.4Φ0.25 Hole |
| 40001340 | 502 Φ0.7/Φ0.35 |
| 40001341 | 503 Φ1.0/Φ0.6 |
| 40001342 | 504 Φ1.5/Φ1.0 |
| 40001343 | 505 Φ3.5/Φ1.7 |
| 40001344 | 506 Φ5.0/Φ3.2 |
| 40001345 | 507 Φ8.5/Φ5.0 |
| 40001346 | 508Φ9.5/Φ8.0 |
| E3608-729-0A0 | 500 1.0×0.5Φ0.3×2 Hole |
| E3600-729-0A0 | 501 0.7×0.4Φ0.2×2 Hole |
| E3601-729-0A0 | 502 Φ0.7/Φ0.4 |
| E3602-729-0A0 | 503 Φ1.0/Φ0.6 |
| E3603-729-0A0 | 504 Φ1.5/Φ1.0 |
| E3604-729-0A0 | 505 Φ3.5/Φ1.7 |
| E3605-729-0A0 | 506 Φ5.0/Φ3.2 |
| E3606-729-0A0 | 507 Φ8.5/Φ5.0 |
| E3607-729-0A0 | 508 Φ9.5/Φ8.0 |
| E3616-729-0A0 | 511 MELF Φ2.0/Φ1.2 |
| E3622-729-0A0 | 517 9.0×3.4 for Connectors |
| E3501-721-0A0 | 101 Φ1.0/Φ0.4 |
| E3502-721-0A0 | 102 Φ1.5/Φ1.0 |
| E3503-721-0A0 | 103 Φ3.0/Φ1.7 |
| E3504-721-0A0 | 104 Φ4.0/Φ3.2 |
