SM Feeder Calibration JIG SMT Feeder Calibration for pick and place Machine

SM Feeder Calibration JIG SMT Feeder Calibration for pick and place Machine

whatsapp:+8613424013606,skype:sensenhenhao

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

JUKI Feeder Calibration Features:

1. It is essential for this equipment that enhanced productivity , installation and quality improvement
2. As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.
3. The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss

Convenience in use---------

1.The acquisition for the rectangular coordinate of X-Y direction.

2.Check for the existence, transformation, user in the feeder

3.The installation is to euip it with actual device and consolidation in feeder base

4.Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis

5.The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)

6.The simple calibration for removing or taking feeder easily

7.It is correction as measurement with CCD Camera.

8.Timer control make it pssible to change the IC pick-u time.

9.The use pressure is able to control in the regulator and air cylinder.

10.Verification and correction available worker`s convenience and well carriage by the work desk.

11.Name:Professional juki  SMT MACHINE  Feeder Calibration

JUKI Feeder Calibration Specification:

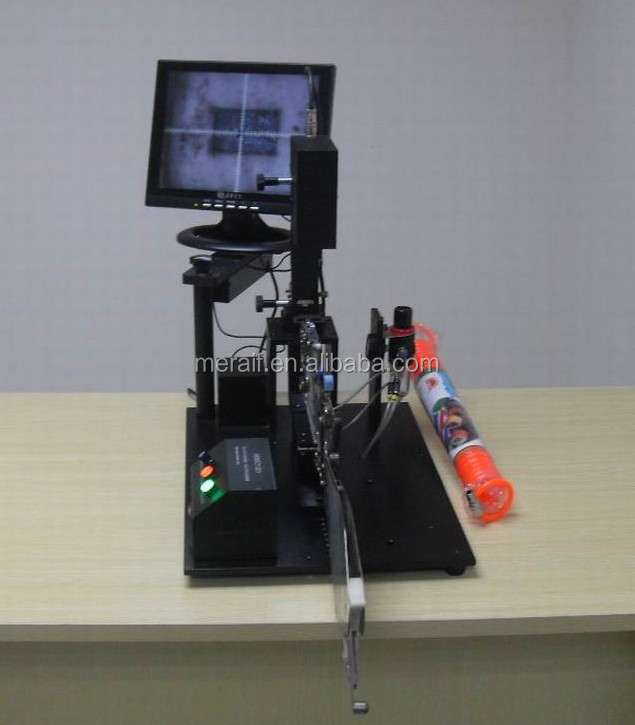

JUKI Feeder Calibration feeder show:
