SMT Yamaha label feeder,Automatic SMT sticker feeder labeling machine for Yamaha Juki pick and place machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
If you need more please feel free contact .
Yamaha label feeder size:L:645.25*W129.8*H 181MM
Weight :6.5kg
Suitable machine model:YV,YS,YG series pick and place machine can use this model label feeder
Fixed mode:Double needle positioning or work rail
Touch screen:3.2inch
Voltage:24V
Average Current:0.8A
Peak Current:2A
Communication mode;RS232
Simplified model:pulse
Software control:based on arm custom
Driving mode:Stepper motor 42 type
Max motor speed:5.18:1 Reducer
Min step Angle:1.8+-5%
Feeding speed:5 levels
Feeding precision:X axis:+-0.1,Y axis:+-0.1
Mounting Precision:2mm-60mm
Applicable package:tape point width <60mm
Drive roller unit:Stripping
Rufueling methods:Shutdown manual refueling
Waste Recovery:tape reel Recycling
Version1:Intelligent brake system
Version2:/
Drop impact test :/
Aging test :No problem for 72 hours of continuous operation
Work record:Complete and consistent
Feeder life:3-5 years
Hanging mode: rear hanging machine
Component positioning method: fiber sensing positioning
Working mode: self-feeding, IO trigger

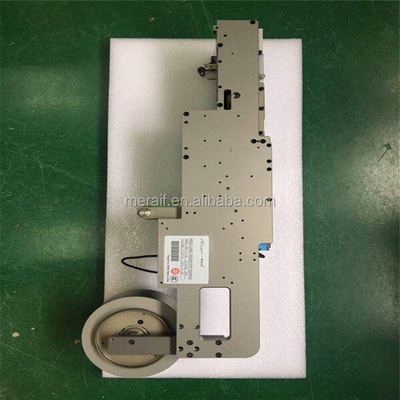

SMT Yamaha label feeder picture show:
