Anti-satic IC Pick up tool Vacuum Sucker Pen with Suction Headers for BGA SMD Work Reballing Aids
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
Anti-satic IC Pick up tool
BULB-VAC With One Vacuum Cup – 3/4″ (19.05mm) diameter Static Dissipative Buna-N Cup.
Our vacuum-bulb type tools are the lowest cost pick-and-place tools available. These tools operate very similar to a tweezer. Simply squeeze the vacuum bulb, place the soft suction cup to the part to be handled, then relax your squeeze and the part is firmly gripped. A second squeeze releases the part.
Anti-satic IC Pick up tool Details:
Applications for this tool is designed for enhanced functionality when handling residue sensitive items such as lenses or optical filters or any item having a smooth-nonporous-surface that the rubber VACUUM TWEEZER™ tip can seal against. This tool can be used with any of our rubber vacuum cups ranging in size from 3/8” (9.53mm) to 3/4” (19.05mm) in diameter. Use the larger cups to pick up larger and heavier parts. For better precision in part placement see our PEN-VAC™ or PEN-VAC™ PRO-Series self contained vacuum pens.
Includes the 3/8″ (9.53mm), 1/2” (12.7mm) and 5/8” (15.88mm) Non-Marking Non-ESD-SAFE PUREACLEAN™ vacuum cups with this kit
Anti-satic IC Pick up tool Advantage:
1. Simple and easy to use, squeeze type without battery;
2. ESD-safe suction cup is available(black color);
3. Surface finished: matte finished;
4. Suction cup size:15,20,25,30,35,40,50mm
5. Various cup size for options:Φ2/5 inch (10mm), Φ1/2inch(12mm), Φ3/5inch(15mm),
Φ4/5inch(20mm), Φ1inch(25mm), Φ1-3/16inch(30mm), Φ1-3/8inch (35mm) ,Φ1-15/16inch(50mm)
6. Cup color available: Black, white

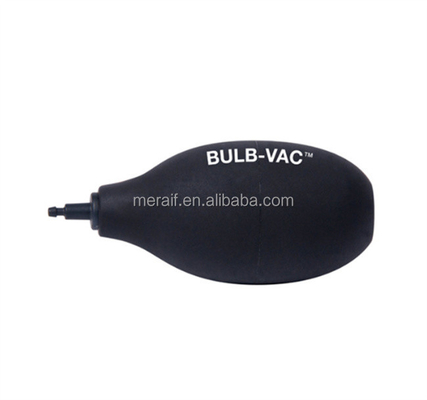

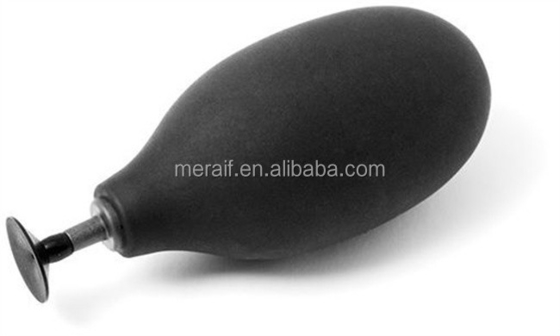

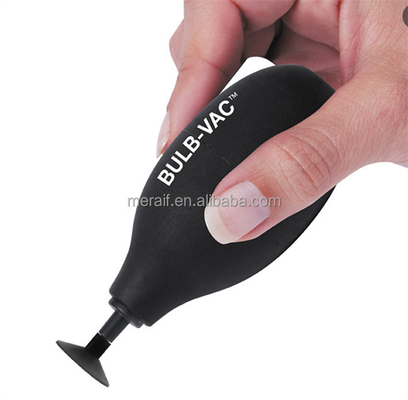

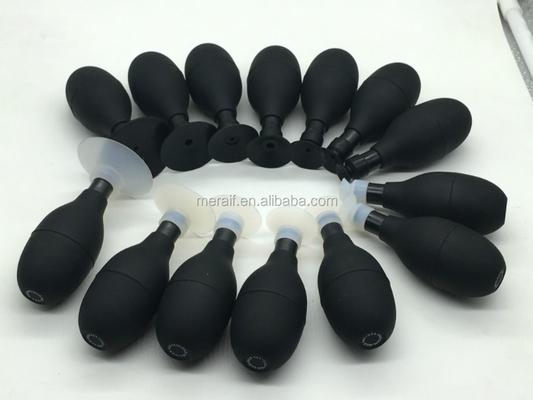

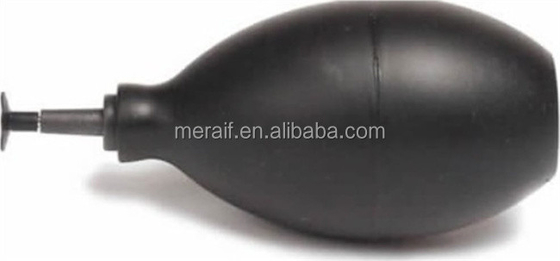

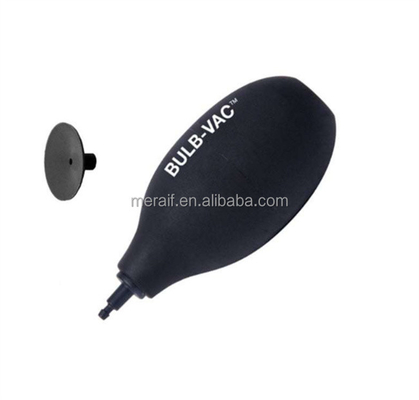

Anti-satic IC Pick up tool picture show:
