SMT machine esd Magazine rack PCB Unloader machine used in electronic Production Line
Whatspp:+8613424013606,skype:sensenhenhao
PCB Unloader machine details
| model:MFU-250 PCB Unloader machine |
| Machine size:1700x780x1200 |
| Control module: Siemens PLC industrial control |
| Frame time: about 6 seconds |
| Tank replacement time: about 20 seconds |
| Power and load: 220v/0.3kw |
| Air pressure and flow: 4~6bar, ≤10L/min |
| Transmission height: 920±20mm |
| Transmission direction: left to right or right to left |
| Circuit board thickness: ≥0.4mm |
| Step selection: 1-4 (10mm step) |
| Sensor brand: Omron |
| Stepper and transport motors: Taiwan CUHK |
| Frame size: 355x320x563 |
| Fault detection: I/O signal detection |
| Equipment weight: 160kg |
| PCB allowable size: (50~50) x (350x250) |

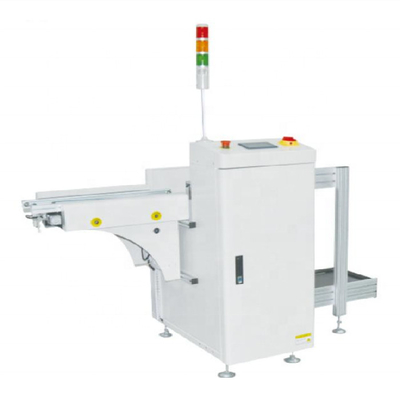

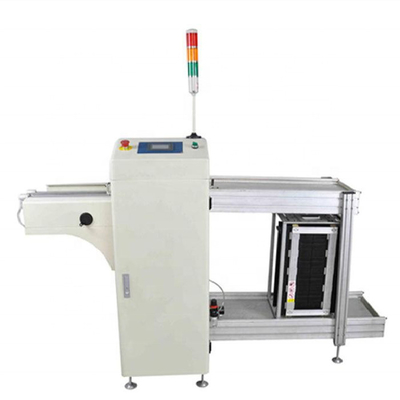

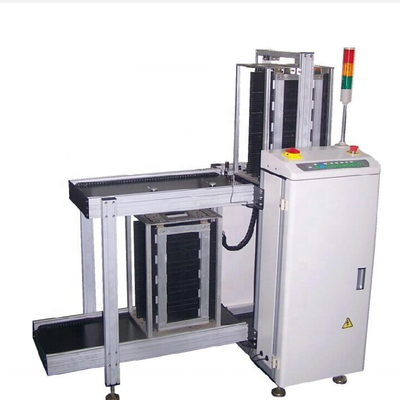

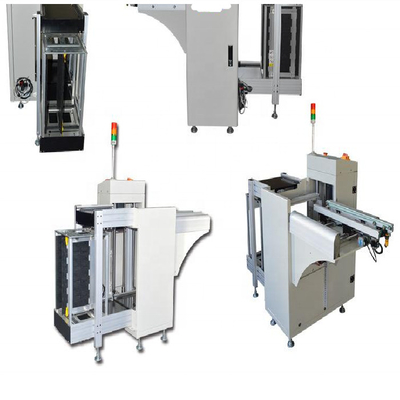

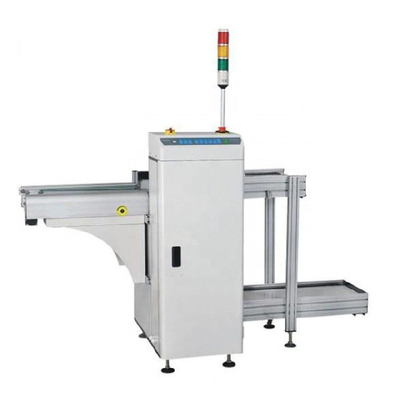

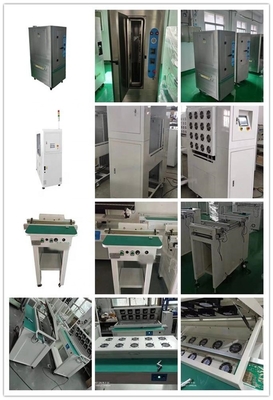

PCB Unloader machine picture show
picture show:
