Name: GXH-3J Pick and Place Machine for Hitachi
Brand: Pick and Place Machine
SKU: GXH-3J Pick and Place Machine
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (170 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: Used

Weight (KG): 1000

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC

Warranty: 1 Year

Product Name: GXH-3J Pick And Place Machine

Skype: Sensenhenhao

Whatsapp/wechat: +8613424013606

Model Number:: RS-1

Applicable Components:: 0402,Minimum 01005-38*38*8.5m

Usage:: SMD LED SMT

Application:: SMT Assembly Production Line

Film Materials:: Privacy Material

Power Supply:: AC220V 50Hz / AC110V

Lead Time: 7-30days

Port: Shenzhen

Basic Infomation

Place of Origin: Japan

Brand Name: Pick and Place Machine

Model Number: GXH-3J Pick and Place Machine

Payment & Shipping Terms

Packaging Details: GXH-3J Pick and Place Machine packing with vacuum wooden carton

Supply Ability: 1000000 Piece/Pieces per Month GXH-3J Pick and Place Machine

Product Description

GXH-3J Pick and Place Machine for Hitachi

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

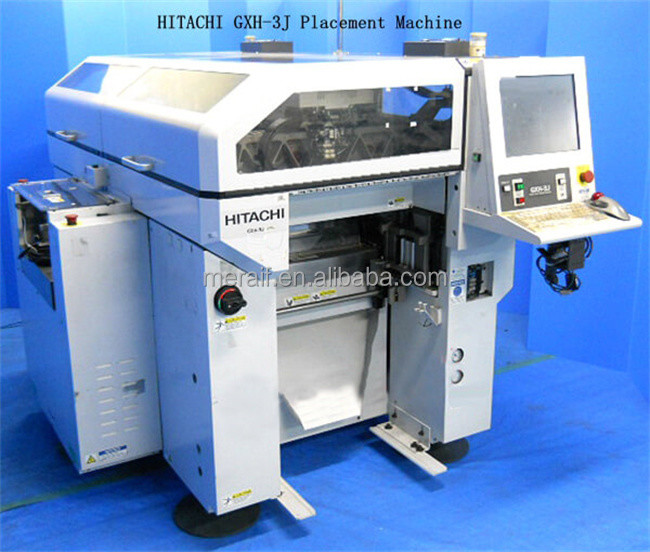

GXH-3J Pick and Place Machine for Hitachi 0

GXH-3J Pick and Place Machine GXH-3J Pick and Place Machinedetails:

Mounting Speed: 12000CPH.
components ranging: 0201(0603mm)
Board Dimensions 460 X 460mm
Four placement heads have up to 12 nozzles each
A placement system with the ludicrous placement rate of 12000CPH.
and flexibility to place components ranging from 0201(0603mm) chip to 100x26mm connector.
Two independent work cells (stages) allow simultaneous assembly of two boards.
All X and Y axes are operated by linear motors.
Each Y axis has two motors for enhanced stability and repeatibility.
Four placement heads have up to 12 nozzles each.
On-the-fly recognition of all components.
A line sensor on each head checks for component presence, orientation, and correct thickness.
Unique board conveyor system moves both rails for optimum board postioning during production.
No more "fixed rails"!!!
An option exists for the placement of 01005 (0402mm) chip components.
Board Dimensions
50 X 50 to 460 X 460mm
(610 X 460 optional)
Thickness: 0.5 to 5.0mm
Component Package: 8mm (paper)
8 to 72mm:(embossed)
Tray, Stick
Component: Sizes
High speed head 0603 (0201) to 44 X 44mm 0402 (01005) (option)
Multi-function head 3216(1206) to 55 X 55mm 100 X 26mm (Connector)
Mounting Accuracy: 50 μm (3σ)

GXH-3J Pick and Place Machine picture show:

GXH-3J Pick and Place Machine for Hitachi 3

GXH-3J Pick and Place Machine for Hitachi 22

Smt machine parts we can support you as follow:

Anything please feel free contact
