FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

$1.00 - $2.00/pieces
Price

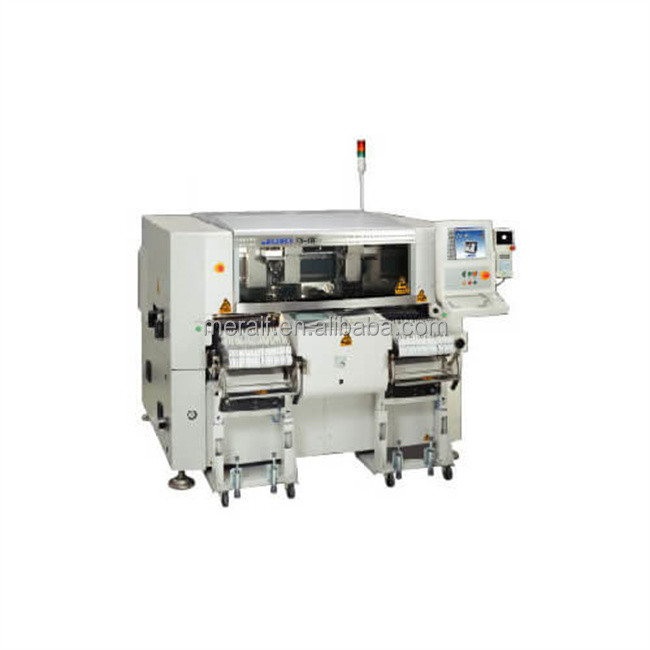

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: Used
Weight (KG): 1000
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Warranty: 1 Year
Product Name: FX-1R Pick And Place Machine
Skype: Sensenhenhao
Whatsapp/wechat: +8613424013606
Model Number:: RS-1
Applicable Components:: 0402,Minimum 01005-38*38*8.5m
Usage:: SMD LED SMT
Application:: SMT Assembly Production Line
Film Materials:: Privacy Material
Power Supply:: AC220V 50Hz / AC110V
Lead Time: 7-30days
Port: Shenzhen
Basic Infomation
Place of Origin: Japan
Brand Name: Pick and Place Machine
Model Number: FX-1R Pick and Place Machine
Payment & Shipping Terms
Packaging Details: FX-1R Pick and Place Machine packing with vacuum wooden carton
Supply Ability: 1000000 Piece/Pieces per Month FX-1R Pick and Place Machine
Product Description

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 0

FX-1R Pick and Place Machine details:

The High-speed Modular Mounter FX-1R is a traditional modular chip

shooter driven at extreme speeds.  Refinements in the drive system
deliver real world improvements in actual throughput.
For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.

JUKI fx-1r Mounter Features:
JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique
hi-drive mechanism for high-speed placement.
Inherited the traditional concept of modular placement machine,
 and realized a high-speed placement of the placement machine.
Reasonably adjust all parts and improve the actual mounting speed.





SMT chip Mounter fx-1r parameters:
Board size: 410*360mm
Component height: 6mm
33,000CPH:chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 (0201) to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Component placement speed:chip:33000cph (best condition)
Chip piece: 25000cph (ipc9850)
Component placement accuracy: ±0.05mm
Component placement type: up to 80 types
Power supply: three-phase ac200~415v
Rated power: 3kva
Air pressure: 0.5±0.05mpa
Machine size: 1,880×1,731×1,490mm

Weight: about 2000kg



FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 1

FX-1R Pick and Place Machine picture show:

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 2FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 3FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 4

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 5FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 6FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 7

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 8FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 9FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 10FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 11

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 12FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 13FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 14FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 15FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 16FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 17FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 18FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 19

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 20FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 21FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 22FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 23

Smt machine parts we can support you as follow:



FX-1R Pick and Place Machine SMT Chip Mounter for JUKI 24

Anything please feel free contact
