JM-100 Hybrid Pick and Place Machine Hybrid Insertion Machine chip mounter machine For JUKI
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
JM-100 chip mounter machine For JUKI
Best speed in this category. Significant speed increase over previous generation. Component insertion time down to 0.6 seconds for
vacuum nozzle and 0.8 seconds for gripper nozzle.
Advancing versatility, quality and speed
Best in class speed.
Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
New "Takumi head" with multiple recognition heights
Component Feeding
Line control using JaNets software
| Multi Task Platform JM-100 | ||
| L size board | ||
| Board size | 410×360mm | |
| PCB Weight | max.4kg | |
| Component height | max30mm | |
| Component Size | Laser recognition | 0603~50mm |
| Vision recognition | 3mm~50mm | |
| Insertion Speed | Vacuum*2 | 0.6sec/part*1*3*4 |
| grip | 0.8sec/part*2*3*4 | |
| Placement Speed | Chip ( Optimum) | 16,000CPH*3*4 |
| Placement Accuracy | Laser recognition | ±0.05mm(3σ) |
| Vision recognition*1 | ±0.04mm | |
* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.

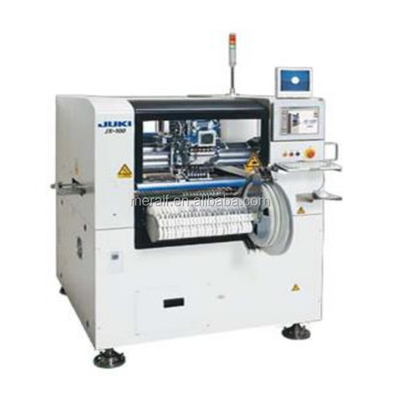

chip mounter machine For JUKI picture show:
