SMT Chip Mounter Pick And Place Machine KE-2020
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Introduce of Pick And Place Machine KE-2020
Substrate size: for M substrate (330×250mm) L substrate (410×360mm) L-wide substrate (510×360mm)
component height: 6mm specification
component size: laser recognition 0603 (imperial 0201) chip to 20mm square component or 26.5×11mm
0402 (English 01005) chip requires optional
component placement speed (actual ergonomics): chip component 13,200CPH
component placement accuracy: laser recognition ±0.05mm
component placement type: up to 80 types (converted to 8mm tape)
component packaging :With 8mm, 12mm, 16mm, 24mm, 32mm, 32mm paste, 44mm, 56mm, 72mm /pole/parts/tray power supply three-phase AC200~415V
rated power: 3KVA
Use air pressure: 0.49±0.05Mpa
Air consumption (standard state): 230L/min
Weight: about 1400kg
Successful Experience:*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

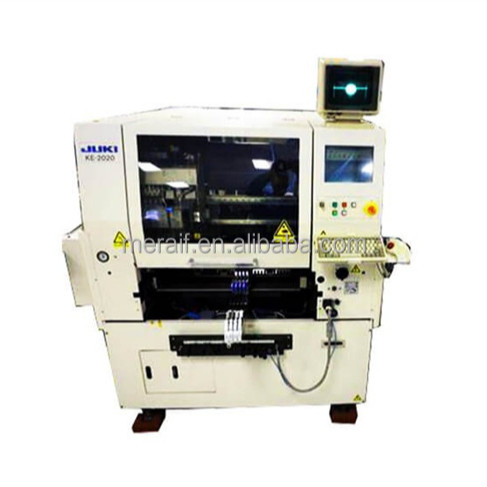

Pick And Place Machine KE-2020 picture show
