High Speed Flexible Mounters KE-2070 SMT chip shooter used pick and place machine
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
| Model | JUKI KE-2070 |
| Condition | Used |
| PCB thickness | 0.40 mm (min) -4 mm (max) |
| Applicable Component | 0402-50mm * 50mm (CHIP, SOT, SOP, MELF, QFP, CONNECTOR, PLCC) |
| Component height | 0.3mm-10.5mm. |
| Pin pitch (Min) | 0.4mm |
| Component Dimensions | 0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max) |
| Mounting speed (Max) | 0.32 sec / CHIP, 1.8 / sec QFP) 8000 chip/ hour |
| Mounting accuracy | ± 0.1mm / chip (when laser recognition) ± 0.09mm / QFP (laser recognition) |
| Substrate size Min | 50 * 30mm |
| Substrate size Max | 410 * 360mm |
| Type of components | Max 20 * 20 mm, can be posted P 0.4 mm BGA and PLCC pin IC |
| Power | single-phase AC200V, 50HZ, 2.5KVA |
| Air pressure and air consumption | 0.5 ± 0.05Mpa, 150N1 / min |
| Dimensions | 1400 * 1300 * 1551 mm |
| Weight | 1150 kg |

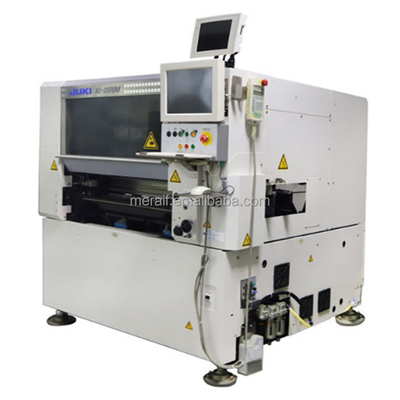

Flexible Mounters KE-2070 picture show:
Smt machine parts we can support you as follow:
Anything please feel free contact
