YG12F pick and place machine Yamaha Chip Mounter SMT PCB assembly line
whatsapp:+8613424013606,skype :sensenhenhao
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
YG12F pick and place machine details:
| Model Name | YG12F |
| Applicable PCB | L50×W50mm - L510×W460mm |
| Mounting Accuracy | Absolute accuracy (μ + 3σ), ±0.05mm/chip |
| Mounting Capability | 20,000CPH (Optimum conditions established by Yamaha Motor) |
| Component supply | Tape reel, tray package |
| No. of component types | Tape reel: 48 types (standard), 107 types (option) |
| Applicable component size | 0402 - 45mm max. (32 - 45mm conditional) |
| Mounting component height | 15mm or less |
| Power Supply | 3-phase AC 200/208/220/240/380/400/416 V ±10% |
| Air Supply Source | 0.55MPa |
| External Dimensions | L1,254×W1,440×H1,445mm (unit only, excluding projections) |
| Weight | Approx. 1,250kg (main unit only) |

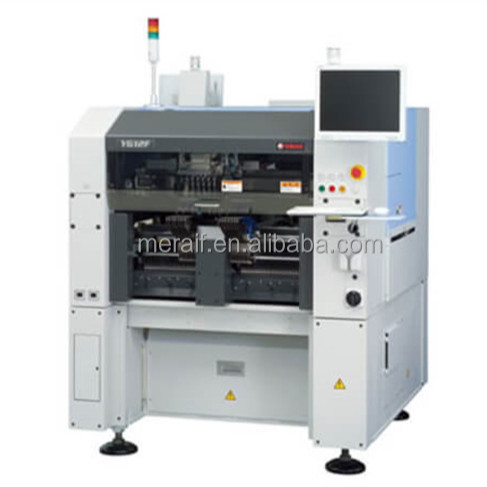

YG12F pick and place machine picture show
