Meraif Smt Ultrasonic Cleaning Machine Ultrasonic Pcba Cleaner Printed Circuit Board Pcb Cleaning Machine
skype:sensenhenhao,whastapp/wechat:+8613424013606
Ultrasonic Pcba Cleaner Description:
MF520 big size PCBA Offline Cleaning Machine is an integrated high-end cleaning machine that is energy-saving, eco-friendly, and designed for batch cleaning. It can automatically complete the cleaning, rinsing, and drying functions. This machine is mainly used for cleaning multi-variety and small and medium batch PCBA boards of high-end products in industries such as military, aerospace, communications, intelligent instruments, and automotive electronics. It can effectively clean the organic and inorganic pollutants such as the rosin flux, water-soluble flux, and no-clean flux/solder paste residue on the surface of SMT/THT PCBA after soldering.
Ultrasonic Pcba Cleaner Features:
The device has an integrated structure and can automatically complete the cleaning, rinsing, and drying processes in one chamber.
1. Cleaning: chemical liquid cleaning, cleaning time, and temperature can be set.
2. Rinsing: multiple rinses with DI water, rinsing time and number of rinses can be set.
3. Drying: hot air drying, drying time and stability can be set. 2. main flow chart put in PCBA→liquid wash →liquid take back→DI water rinse1→DI water rinse 2→DI water rinse N→Hot air blow dry→take out PCBA
250M PCB Board Cleaning Machine Spec:
| Item | PCB cleaning machine |
| Dimension | L600mm*W980mm*H1200mm |
| Substrate size | min:50*50mm Max:330*350mm |
| Transfer motor | Stepper motor |
| Transfer speed | 0-17.5 m / min |
| Control | Mitsubishi PLC control, operation panel for display control touch screen |
| Transmission Direction | Single(left→right or right→left) |

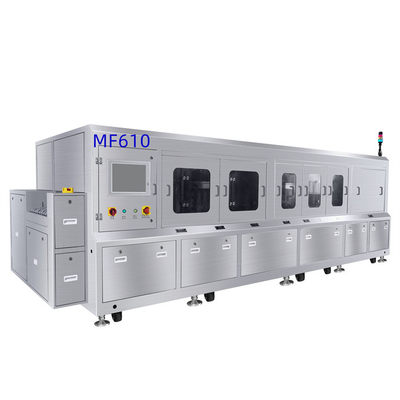

PCBA Assembly Line Cleaning Machine picture show:
