hot air and hot iron 2 in 1 rework soldering station new type 2 in 1 soldering soldering iron 2 in 1
2 in 1 rework soldering station details:
1, 2 in 1 powerful function, saving work space.2 in 1 soldering system.
2, Germany quality MCH long life heating cartridge, plug in and pull out type, easy to replace.
3, ultra-quiet, -computer control to make up the hot air soldering station.
4, German original motor, intelligent sleep and cooling.
| Product Specifications: | |
| Model | H92 |
| Heat gun | |
| Power supply | 220VAV/50Hz 110VAC/60Hz |
| Dimensions | 185(L)*130(W) *137(H) |
| Power consumption | 1500W |
| temperature Range | 80-550℃ |
| Stable Temperature | ±5℃ |
| Air Volume | Level 1-8 |
| DC turbine fan | 24V/8300 Rotation |
| High temperature sleeve | GP5/GP6(Purchase additionally) |
| Exothermic material | 220V/A1526 110V/A1525 |
| Output Voltage | 220V/110V |
| Cord length | 1.2m |
| Weight | 1.1kg |
| Soldering Iron | |
| Power | 90W |
| temperature Range | 80-480℃ |
| Tip to Ground Resistance | Under 2 Ω |
| Tip to Ground Potential | Under 2Mv |
| Tip Style | T series tip(soldering tip) |
| Exothermic material | A1529 |
| Output Voltage | 24V |
| High temperature sleeve | GT04 |
| Cord length | 1.2m |
| Weight | 100g |
| Removable Accessories | |
| Part No. | Produce Instruction |
| ZBC00002 | FP Removable Connection(S)and(L)Copper Core |
| WWJ00087 | FP Removable Copper Core(S) |
| WWJ00086 | FP Removable Copper Core(L) |

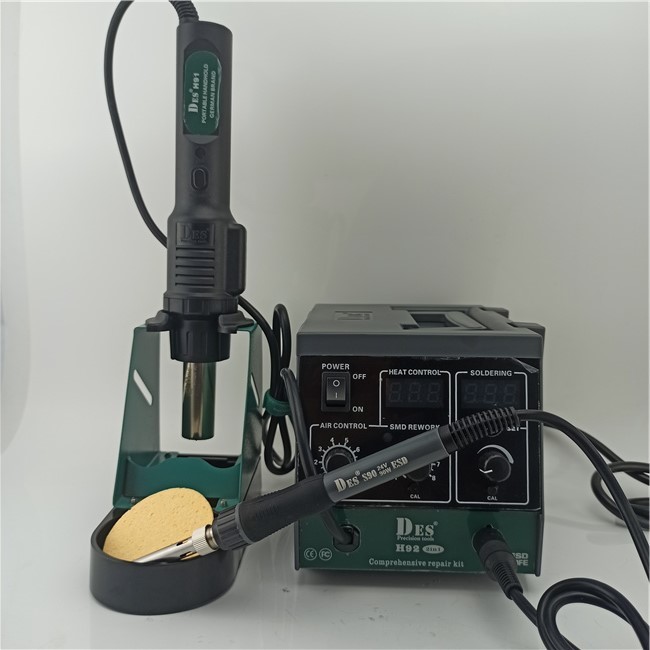

2 in 1 rework soldering station picture show:
