Factory wholesale Hanging basket ESD PCB Storage trolley/esd workshop trolley/esd smt reel storage cart
whatsapp:+8613424013606, skype;sensenhenhao
1. External dimensions: L950 * W600 * H1700mm ± 10mm
2. Basket Size: L410 * W280 * H160mm ± 3mm
3. hanging Basket inner angle: 90 degrees
4. hanging Basket production method: stainless steel edging
5.Number of hanging Basket: 24pcs
6.Number of the PCB plate can be stored in Each hanging basket: 38PCS
7. hanging Basket guide groove: Vertically insert
A. groove depth: 3mm
B. Width: 3mm
C. slot length: 220mm
D. groove height: 140mm
E: grid spacing: 10mm
8. surface resistance: 104Ω---109Ω
9. Main Material: 201 stainless steel pipe and PP conductive plate
10. hanging Basket bearing weight: 15KG
11. Casters Dimensions and materials: 3 inches
12. Antistatic measures: conductive material,and conductive chain
13. Tube Thickness: 0.9mm ± 8C
14. Affordable temperature: 60 ℃

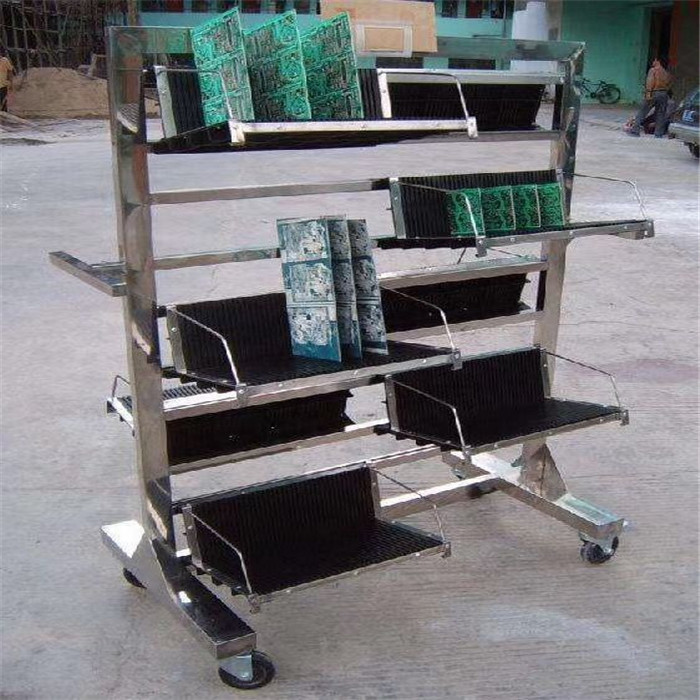

Antistatic Turnove Hanging Basket picture show:
