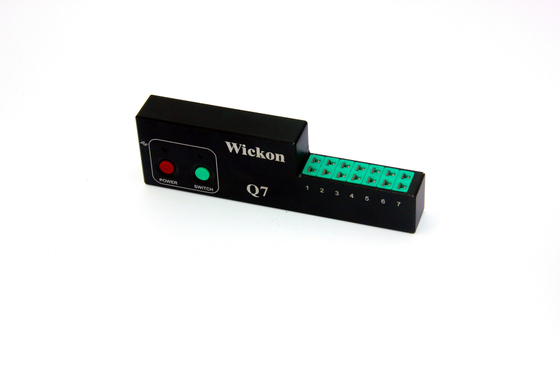

Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7

Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7
Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7
video play

Large Image :  Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7

Product Details:
Place of Origin: China
Brand Name: SMT Wickon Thermal Profiler
Model Number: wickon Q17 thermal profiler
Payment & Shipping Terms:
Minimum Order Quantity: SMT Wickon Thermal Profiler 1 set
Price: SMT Wickon Thermal Profiler exw price is 2300-3000usd/set
Packaging Details: wickon thermal profiler packing with foam+carton
Delivery Time: smt reflow thermal profiler delivery within
Payment Terms: wickon A6L profiler pay by TT, MoneyGram, Western Union
Supply Ability: SMT Wickon Thermal Profiler 3000sets per month
Detailed Product Description
Item: SMT Wickon Thermal Profiler Testing Channel: 7 Channels
Sampling Frequency: 0.05s~60Min Resolution: 0.1℃
Precision: ±0.5℃ Max. Inner Runtemperature: 105℃
Temperature Range: -150℃~1370℃ Run Voltage: 3.7V~4.2VDC
Function: PCC Intelligent Analysis Module Language Version: Chinese,Endlish
High Light:

thermal profiler equipment

,

reflow oven profiler

SMT Wickon Thermal Profiler 6 Channel type SMT Oven Temperature Tester wickon Q7



Time and temperature are very important variables in soldering printed circuit boards.



It is important to bring the circuit board assemblies up to a high enough temperature for a long enough period to effectively solder the components to the board.



Getting the temperature up too high or heating the assembly too quickly can result in component damage.



Not heating things up enough results in poor soldering and reliability problems.


WICKON manufactures a variety of instruments to assist you in accurately monitoring the time and temperature variables in your electronics manufacturing processes. This process is called Thermal Profiling.



WICKON Thermal Profiler Detailed structure:
1: Wickon box
2: Manual
3: insulation box
4: Data logger
5: High temperature gloves
6: data cable
7: Insight Software
8: Thermocouple
9: The factory calibration report



wickon thermal profiler Advantages:


1. Ensure that products meet the welding specifications
2. highlighting the hot furnace cooling
3. Set oven to save time and money required
4. so that production can be maximized
5. Provide ISO9000 traceability process required proof



WICKON Thermal Profiler Data:

Item Details
Product WICKON thermal profile
Temperature range -200C--1370C
Work temperature 0-105C
Total storage 4,000,000points
battery Without deliberately charging automatically add power, truly 365 without charge.
No. Of channel 6.7.10.12.15.24.32
sampling interval 0.05s~86400s(Can be set according to testing requirements)
Thermocouple type K
Accuracy +-0.5C
Battery type Rechargeable lithium polymer battery
Start Mode Direct mode, mode conditions (air and start testing length setting)
Weight of Insulated box Depending on the model and different heat time
Size of Insulated box Different specifications and heat time to decide





WICKON Thermal Profiler picture show:

Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7 0Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7 1Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7 2Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7 3Smt Kic Thermal Profiler 6 Channel Type Smt Oven Temperature Tester Wickon Q7 4
