Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery

Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery
Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery
video play

Large Image :  Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery

Product Details:
Place of Origin: USA
Brand Name: KIC Explorer profiler
Certification: CE
Model Number: KIC Explorer thermal profiler
Payment & Shipping Terms:
Minimum Order Quantity: KIC Explorer thermal profiler 1 set
Price: KIC Explorer thermal profiler exw price is 3650usd/set
Packaging Details: KIC Explorer Thermal Profiler packing with wooden case
Delivery Time: KIC Explorer Thermal Profiler within 15 days after payment
Payment Terms: TT,western union,paypal and so on
Supply Ability: KIC Explorer thermal profiler 3000sets per month
Usage: Industrial, reflow oven temeperature profile test
Theory: Temperature Recorder and Analytical instruments
Detailed Product Description
Brand Name:: KIC Explorer Thermal Profiler Usage:: Industrial, Reflow Oven Temeperature Profile Test
Theory:: Temperature Recorder Accuracy:: ±0.5℃(Full Scale), ±0.5℃(Full Scale)
Temperature Range:: -150℃~1050℃ Resolution:: Variable 0.3C To 0.1C
Internal Operating Temp:: 0C To 105C Sample Rate:: 0.1 To 10 Per Second
Brand:: Temperature Profiling Channel: 7channels
High Light:

reflow oven profiler

,

reflow oven temperature profile

 SMT Thermal Profiler KIC Explorer , Reflow Oven Checker Kic Profiler 7 channels

Compact - Powerful - Easy to Use

The KIC Explorer is a generation of thermal profilers that features an impressively compact design. It will easily move through the restrictive process dimensions encountered in today's thermal applications. The KIC Explorer incorporates state-of-the-art SMT technology and high-temperature rated components, backed by our distinguished reputation for reliability. You can depend on this rugged, innovative hardware to endure the harsh conditions of real-world factory use.

The KIC Explorer is available in 7, 9, and 12 channel versions using standard type K thermocouple connectors.

Acquiring more data in a small unit is only the beginning. The KIC Explorer's industry leading performance provides users better data acquisition performance to identify exactly what is going on with each thermal profile and process in the factory. Thermal profile data are conveniently transferred to your computer via a USB connection. The KIC RF version transfers the profile data in real time to the PC via wireless radio frequency transmitters. Standard AAA batteries power the KIC Explorer and you have the option of using rechargeable batteries if you prefer. The KIC Explorer offers you unmatched performance, flexibility and miniaturization in this new generation of thermal profilers.


Thermal Profiler KIC Explorer  Technical Specifications

1. Accuracy: ±1.2C

2. Resolution: Variable 0.3C to 0.1C

3. Internal Operating Temp: 0C to 85C

4. Thermocouple Compatibility: 7, 9, 12-Channel, Type K, Standard

5. Temperature Range: -150C to 1050C

6. Power Requirements: Standard 9V alkaline battery

7. Data Points: 224,640

8. Dimensions: See Temperature Tolerance Chart below for specifications

9. Sample Rate: 0.1 to 10 per second
Datalogger Model: data is downloaded to the computer through a cable after the run.
Dual Unit Model:data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.


Thermal Profiler KIC Explorer  Computer Configuation
Minimum System Requirements


1.When KIC 2000 Software is running on the same computer as the Oven software, and/or when additional KIC 2000 Software options are installed, a faster CPU and more RAM may be required.


2.A USB to Serial Adapter may be required to connect the SlimKIC 2000 for profiling.


3.Contact KIC for issues with operating systems other than those listed.


400 MHz Processor, Celeron / 128 Mb RAM1
1 Gb available storage (for product history)


Video 1024 x 768 resolution / 16-bit
1 available serial port or USB port2


1 available parallel port or USB port for software key options
soft® Windows® 2000 or XP3

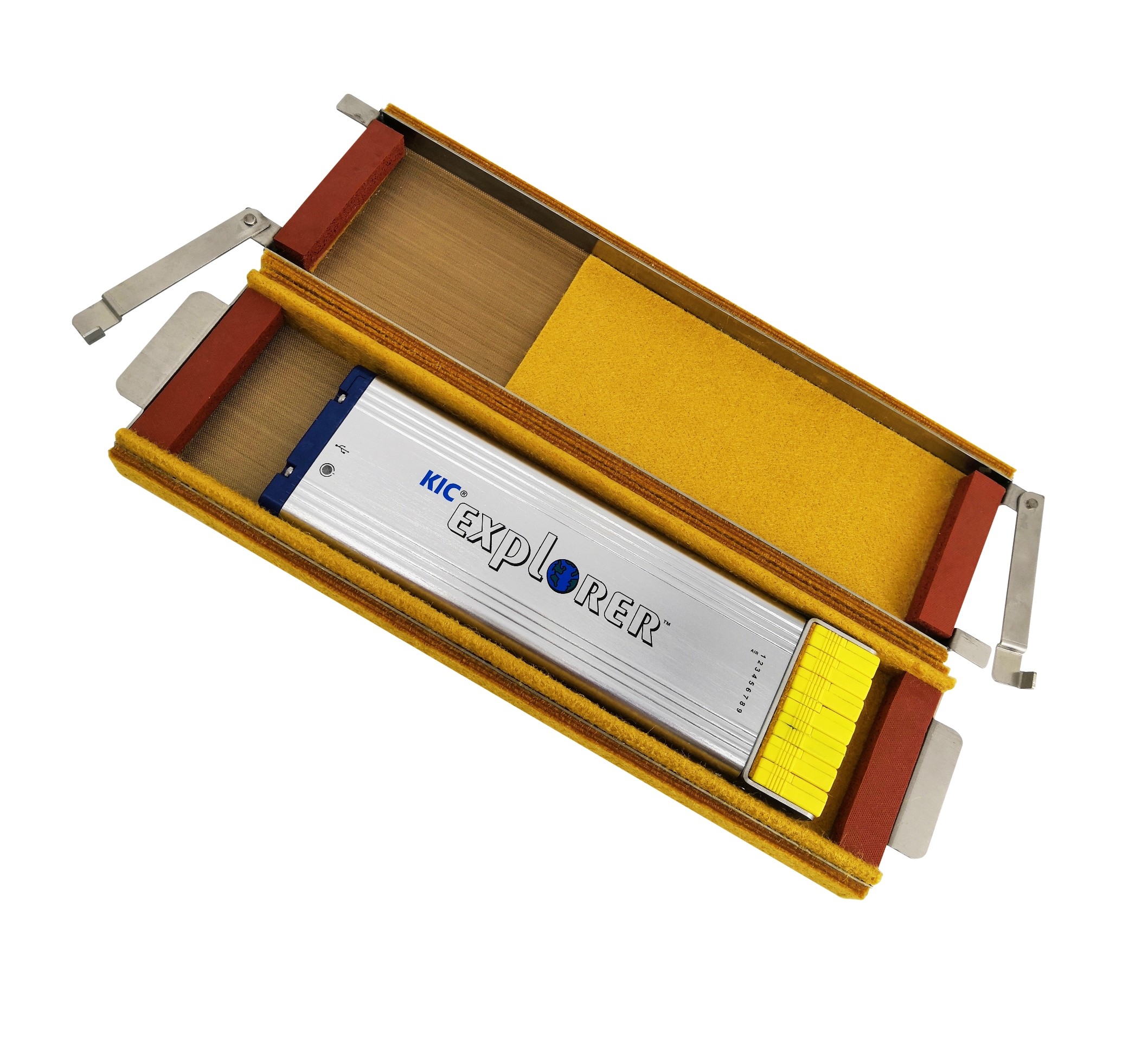

Thermal Profiler KIC Explorer picture show:


,Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery 0Original Reflow Oven Kic Explorer 7 Channels Standard 9v Alkaline Battery 1
