KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check

KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check
KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check

Large Image :  KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check

Product Details:
Place of Origin: USA
Brand Name: KIC SPS Smart Thermal Profiler
Payment & Shipping Terms:
Price: $8,500.00 - $15,000.00/sets
Packaging Details: KIC SPS Smart Thermal Profiler Packing with Cartoon Box
Supply Ability: 1000 Set/Sets per Month
Detailed Product Description
Warranty: 1 Years Customized Support: KIC SMART PROFILER SPS
Item: KIC SPS SMART Profiler Channels: 9ch
Skype: Sensenhenhao Whatspp/wechat ID: +8613424013606
Accuracy:: ±0.5°C Resolution:: 0.1°C
Internal Operating Temp:: 0°C To 85°C Sample Rate:: 0.002 To 50 Per Second
Data Points:: 72K Per Channel Temperature Range:: -150°C To 1050°C
Port: Shenzhen

KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check

whatsapp:+8613424013606,slype:sensenhenhao,wechat:JoyLY0322





We are the Authorized Distributor of KIC

KIC SPS Smart Thermal Profiler specifications:

The SPS Smart Profiler stands out as the best and “smartest” temperature profiling data collection system available. The hardware is the best in temperature tolerance design using an LCP (Liquid Crystal Polymer) enclosure for better protection and faster cool down between profiles. The design of the SPS thermal shields allows for easy and secure opening and closing, durability that meets the most stringent of drop tests, and temperature tolerance capabilities that exceed all previous KIC profiler and shield models.



Accuracy: ±0.5°C

Resolution: 0.1°C

Internal Operating Temp: 0°C to 85°C

Sample Rate: 0.002 to 50 per second

Data Points: 72K per channel

Temperature Range: -150°C to 1050°C

PC Connection: USB 2.0 (Std-A/Micro-B)

Power: Internal rechargeable NiMH battery

 USB cable connected to PC or power supply

 10 minute fast recharge for a single profile

Wi-Fi: 2.4 GHz

ANT: 2.4 GHz

Thermocouple Compatibility:

 7, 9, 12 Channel Unit: Type K, Standard

Dimensions (L x W x H mm):

 7-Channel Unit: 188.0 x 60.0 x 17.0

 9-Channel Unit: 188.0 x 75.0 x 17.0

 12-Channel Unit: 188.0 x 98.0 x 17.0

Vacuum compatibility: 1.12kPa (8.40 torr) up to 45 minutes



KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 0

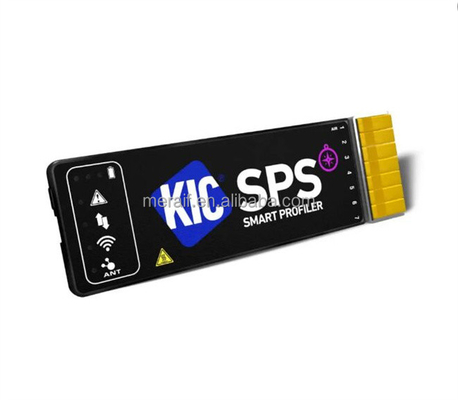

KIC SPS Smart Thermal Profiler picture show:

KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 1KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 2KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 3KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 4KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 5KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 6KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 7KIC SPS Smart Thermal Profiler KIC SPS Smart Reflow Oven Profiler for smt reflow oven temperature check 8
