KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel

$5,850.00/sets 1-4 sets
Price
KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR
Customized Support: OEM
Item: KIC EXPLORER Thermal Profiler
Skype: Sensenhenhao
Whatspp: +8613424013606
Lead Time: 7-10days
Weight: 6kg
Package: Carton
MOQ: 1set
Theory:: Temperature Recorder
Usage:: Industrial
Model Number:: KIC Explorer
Port: Shenzhen
Basic Infomation
Place of Origin: USA
Brand Name: KIC EXPLORER thermal profiler
Payment & Shipping Terms
Packaging Details: KIC Explorer Packing with Cartoon Box
Supply Ability: 1000 Set/Sets per Month
Product Description

KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322





We are the Authorized Distributor of KIC

KIC EXPLORER thermal profiler Specifications:

  Compact — Powerful — Easy to Use

The KIC Explorer is a generation of thermal profilers that features an impressively compact design. It will easily move through the restrictive process dimensions encountered in today’s thermal applications. The KIC Explorer incorporates state-of-the-art SMT technology and high-temperature rated components, backed by our distinguished reputation for reliability. You can depend on this rugged, innovative hardware to endure the harsh conditions of real-world factory use.
The KIC Explorer is available in 7, 9, and 12 channel versions using standard type K thermocouple connectors.
Acquiring more data in a small unit is only the beginning. The KIC Explorer’s industry leading performance provides users better data acquisition performance to identify exactly what is going on with each thermal profile and process in the factory. Thermal profile data are conveniently transferred to your computer via a USB connection. The KIC RF version transfers the profile data in real time to the PC via wireless radio frequency transmitters. Standard AAA batteries power the KIC Explorer and you have the option of using rechargeable batteries if you prefer. The KIC Explorer offers you unmatched performance, flexibility and miniaturization in this new generation of thermal profilers.
Profiling Reduced to a Single Number
The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process!    (See the PWI data sheet for a detailed explanation)
Technical Specifications
System Accuracy: ±1.2C1
Resolution: 0.1C
Internal Operating Temp: 0C to 85C
Sample Rate: 0.1 to 10 per second
Data Points: 224,640
PC Connection: USB 2.0 (Std-A/Mini-B)
Power Requirements: (3) AAA batteries
Thermocouple Compatibility:
7, 9, 12-Channel Unit: Type K, Standard
Dimensions (L x W x H mm):
7-Channel Unit:
9-Channel Unit:
12-Channel Unit: 206.0 x 60.0 x 17.0
206.0 x 75.0 x 17.0
206.0 x 98.0 x 17.0

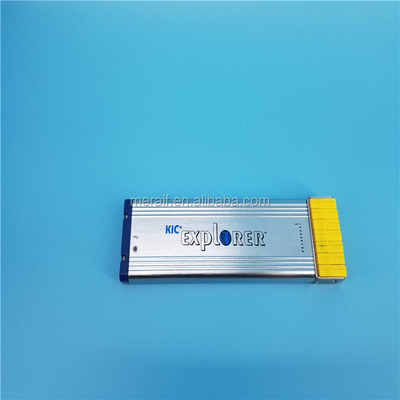

KIC EXPLORER thermal profiler picture show:

KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 0KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 1KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 2KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 3KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 4KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 5KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 6



KIC Explorer thermal profiler for SMT reflow oven KIC Explorer 7 9 12 Channel 7





We are the Authorized Distributor of KIC

Please feel free contact JOY Liang.

skype:sensenhenhao,whatsapp:+8613424013606 wechat:JoyLY0322
