SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven

SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven
SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven

Large Image :  SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven

Product Details:
Place of Origin: USA
Brand Name: KIC X5 12ch Temperature Tester
Payment & Shipping Terms:
Price: $10,000.00/sets 1-9 sets
Packaging Details: KIC X5 packing with Original KIC X5 Packing with Cartoon Box
Supply Ability: 1000 Set/Sets per Month
Detailed Product Description
Customized Support: KIC X5 7ch Profile Item: KIC X5 12ch Temperature Tester
Brand: KIC X5 7 Channels Thermal Profiler Accuracy: +/-0.5 Deg.C
Temperature Range: Can Up To 350-400 Deg.C Usage: Industrial
Delivery Time: Within 3-7 Days After Received Payment Packing Way: Original KIC X5 Packing With Cartoon Box
Skype: Sensenhenhao Whatspp/wechat ID: 008613424013606
Payment: TT,Western Union,money Gram,paypal And So On Port: Shenzhen

SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven

  whats-app:+8613424-013606,sky-pe:sensenhenhao





We are the Authorized Distributor of KIC

KIC X5 Specifications:

KIC X5 Profiler
7 Channels : 206X60X17mm
9 Channels : 206X75X17mm
12 Channels : 206X98X17mm

Intelligent Thermal Profiler
Robust and Compact Hardware with 1 Year Warranty
This new and improved thermal profiler hardware is designed to withstand the roughest and toughest daily handling. In addition, the electronic circuitry has been changed to tolerate a higher level of voltage spikes
that occur occasionally in some ovens and wave solder machines. KIC is putting its money where its mouth is by offering a standard two year warranty on this durable profiler. The X5 thermal profiler is available in 7, 9, and 12 channel versions using standard type K thermocouple connectors. Acquiring more data in a small unit is only the beginning. The X5 industry leading performance provides better data acquisition to precisely identify what is going on with each thermal profile and process in the factory. Thermal profile data are conveniently transferred to your computer via a USB connection. The X5 RF version transfers the profile data in real time to the PC via wireless radio frequency transmitters. Standard AAA batteries power the X5 and you have the option of using rechargeable batteries if you prefer. The X5 is also powered via the USB cable when connected to a computer, bypassing the batteries, thus extending the duration of their use.

Data Intelligence Software
The X5 thermal profiling software uses a modern, graphical interface that quickly and intuitively guides you through the task of profiling. All your critical profile and process data are measured including slope, peak temperature, time above liquidous, etc. In addition, the software measures the Process Window Index™ (PWI) statistic. The PWI mathematically and objectively identifies your profile’s ‘fit’ to the established process window. A PWI less than 100 indicates an in-spec profile. The PWI is lower as your process is centered within the process window. Therefore, the lower your PWI, the deeper in the sweet spot of the process window. The PWI also instantly reveals where your process or the oven needs to be adjusted. Manual prediction capability comes standard with the X5 allowing you to instantly view the expected change in the profile to changes in the oven setpoints. The X5 dual mode includes the passive profiling recording functionality and the active oven setup and process optimization capability. The Navigator Power™ software feature automates process improvement and equipment/machine optimization for you and ships standard with the X5. Within seconds, the Navigator Power will identify the single best oven setup based on your choice of 3 optimization criteria:
* Center of the process window
* Maximum conveyor speed
* Minimum electricity use

The X5 thermal profiler also comes standar with SPC charting software that helps reveal changes in the profile over time. The X5 hardware and software establish a new generation of profiler to improve your equipment’s production quality, productivity, and documentation.

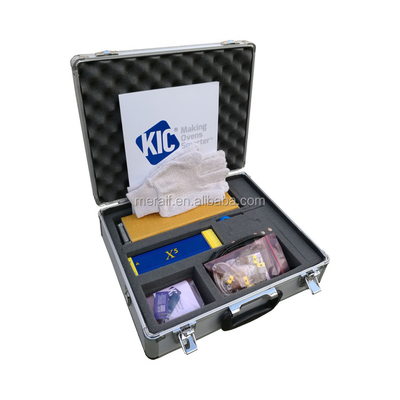

KIC X5 12ch Temperature Tester picture show:

SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 0SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 1SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 2SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 3

SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 4SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 5SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 6SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 7SMT Original new Intelligent Thermal Profiler KIC X5 12ch Temperature Tester for SMT reflow oven 8





We are the Authorized Distributor of KIC

Please feel free contact JOY Liang.

skype:sensenhenhao,whatsapp:+8613424013606 wechat:JoyLY0322
