Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven

Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven
Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven

Large Image :  Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven

Product Details:
Place of Origin: Germany
Brand Name: wickon thermal profiler
Payment & Shipping Terms:
Price: $2,400.00/sets 1-4 sets
Packaging Details: Furnace Temperature Tracking Tester
Supply Ability: 10000000000 Set/Sets per Month
Detailed Product Description
Warranty: 1year Customized Support: Wickon X6mini Thermal Profiler
Item: Wickon X6mini Whatsapp: +8613424013606
Wechat: JoyLY0322 Skype: Sensenhenhao
Application:: Temperature Inspection In SMT Reflow Oven Oven Temperature Range:: -200℃~370℃
Battery Type:: Rechargeable Lithium Polymer Battery Storage Capacity:: 4,000,000 Points
Sampling Interval:: 0.05s To 86400s, Set As Per Requirements Accuracy:: ±0.5 ℃
Port: Shenzhen

Wickon X6 thermal profiler Furnace Temperature Tracking Tester temperature profile for smt reflow oven

whatsapp:+8613424013606,skype:sensenhenhao,wechat;JoyLY0322





Thermal Profiling for Reflow Oven Features:

1)Can analyze high / low temperature, temperature and time, calculate the slope, rise / fall computing

     and different peak and peak and poor;

2)  can be calculated heating, holding time, cooling rate and heat treatment parameters;

3)  temperature curve can be drawn throughout the process;

4)  temperature uniformity can be directly printed test report or electronic file output test reports;

5)  simulation curve function, process optimization, test date and time

     Output F) company name, product name, and notes information processing.

6) Name:Professional Wickon Thermal Profiler Thermocouple Profiler SMT Thermal Profiling for Reflow Oven

Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 0

Fast, accurate and economical process temperature profiling
 wickon thermal profiler Hardware Advantages
1.With MINI appearance, with narrow product, within the industry as the most thin, highly integrated chip design, more advanced
technology; the test is low, higher high-temperature furnace through a narrow, application industry and the wider field;

2.The full realization of USB communication and USB charging function, truly no need to deliberately charging 365 days;

3.WICKON temperature tester entire family includes series X6.X8.X10.A6L.Q7.Q10.Q12.Q15.Q24 ,Q32 and so on products. Model is
complete, up to the maximum number of channels as much as 32, the most in the industry.

4.The real use of FLASH chip, can automatically save data in case of any unexpected power outages;
5.All the chips inside the instrument effectively military-grade temperature up to 105 degrees

6.British with green LABFACILITY thermocouple plug, the reaction speed of 0.1 seconds, more accurate
wickon thermal profiler Software Advantage
1.Has ISO9000 file filled traceability, easily filled history temperature curve, superuser privileges may be arbitrarily
correction curve

2.PWI analysis comes at no extra additional costs, easy set reflow process engineers to optimize the process parameters according
to the guidelines PWI

3.Craft editing window highly integrated, operating in a window you can edit all process technology, without switching between
multiple windows settings, operation more simple

4.You can simultaneously test 24 sets of data, and then import the PC computer together, one by one arbitrary curve analysis,
saving testing time

5.The software comes with data import and export functions to facilitate data analysis and statistical curve

6.Powerful component features, has a curved cut, add and modify the temperature of the line. Between any two points and two data
analysis, information edit notes, and save as curve editing

7.Wave energy test automatic partitioning, automatic on PROFILE display maximum temperature and preheat peak, automatic peak
analysis flatness

Thermal Profiling for Reflow Oven Specification:

Project

Description

Commodity

temperature curve tester

Temperature range

-200~370

Operating temperature

0~105

The total storage capacity

4,000,000points

Battery

Without deliberately charging, automatic replenishment capacity, the real 365 without charge

Number of Channels

4,6,7,8,10,12,15,24

Sampling interval

0.05s~86400s( Can be set according to the testing requirements )

Thermocouple Types

K

Accuracy

±0.5

Battery Type

Rechargeable lithium polymer battery

Insulated box Weight (kg)

0.52KG

Insulated box size (mm):L*W*H

145mm*90mm*36mm





Configuration List:

1: Wickon box

2: Manual

3: insulation box

4: Data logger

5: High temperature gloves

6: data cable

7: Insight Software

8: Thermocouple

9: The factory calibration report

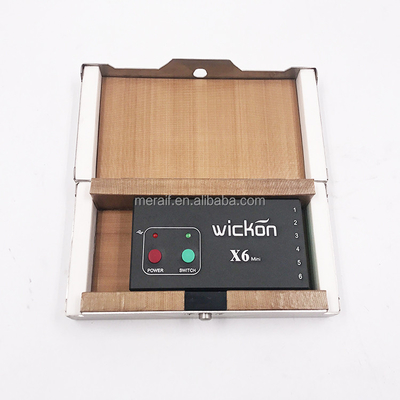

Wickon X6mini thermal profiler picture show:

Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 1Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 2Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 3Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 4Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 5Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 6Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 7



Wickon X6mini thermal profiler Furnace Temperature Tracking Tester wickon temperature profile for smt reflow oven 8
