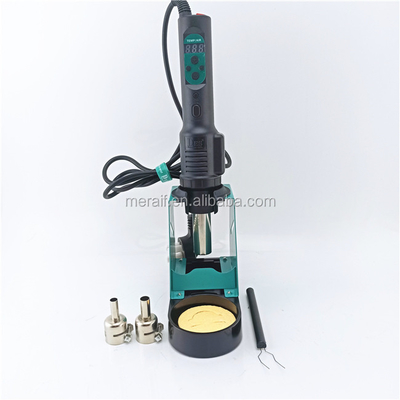

Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit

Supplier response is excellent and packing condition is good and delivery made as per schedule. product is very good..

—— Dora

good service tracking product

—— Kittip

Shipped the product I expected. Will do more orders in the future.

—— john

I'm Online Chat Now

Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit

Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit
Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit

Large Image :  Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit

Product Details:
Place of Origin: China
Brand Name: soldering station
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $100.00/pieces 5-49 pieces
Packaging Details: desoldering iron kit
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Type: Soldering Station Condition: New
Applicable Industries: Machinery Repair Shops, Retail Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Months Core Components: Soldering Station
Showroom Location: None Warranty: 3 Months
Key Selling Points: Easy To Operate Weight (KG): 1.5 KG
Product: Soldering Station Whatsapp: +8613424013606
Skype: Sensenhenhao Air Volume: 28L/min
Rated Voltage: 220V/110V For Option Rated Output Power: 560W
Function: Hot Air Soldering Machine Feature: Cool / Hot Air, Temperature Adjustable, Temperature Digital Dusplay
Temperature Range: 80-600℃ Usage: Desoldering,repair Circuit Board
Port: Shenzhen

Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit

whatsapp:+8613424013606.skype:sensenhenhao



hot air soldering machine
hot air rework tool
portable rework stationstation

soldering station Specifications:
Console
Model DES-560C
Air volume 28L/min
Heating element 110V/A1525 ;220V/A1526
High temperature resistance sleeve GP5
Power consumption 560W
Hot air temperature 80-600℃
Weight 0.8kg
External dimensions 32*20.5*6cm
Cord length 1.6m
packing list:
packing carton 1
manual 1
main body 1
IC popper (large, small) 1
spurt-tip A1130 1
spurt-tip A1170A

1





soldering station Features:

1.Upgraded Hot Air small size, saving working space with the new design.
2.Smd Rework adopt vortex air outlet to reduce uneven temperature distribution.
3.The household hot air heat gun small body volume, saving working space, portable handle controlling, saving working time.
4.Smd Rework Soldering Station, adapting to desoldering chips of QFP, SOP PLCC & SOJ.
5.Setting cooling function:when turning off the power, the system continues sending cool air until the temperature is lower down to 80℃, protect the elements from high temperature damage.
6.Inside built-in temperature sensor, to ensure stable temperature of different air volume.
7.Static elimination design that is safe for sensitive elements.



soldering station picture show:

Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 0Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 1Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 2Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 3Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 4Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 5Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 6Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 7Portable handheld hot air gun soldering station, rotating wind high temperature hot air desoldering iron kit 8
